Repair Procedures: Replacement

1. Open the front seat mounting bolt cap (A), then loosen the mounting bolts.

   Tightening torque:

   44.1 - 58.8 N.m (4.5 - 6.0 Kgf.m, 32.5 - 43.4 lb.ft)

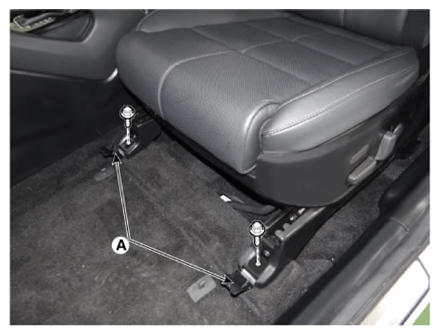

   [Front]

   Courtesy of KIA MOTORS AMERICA, INC.

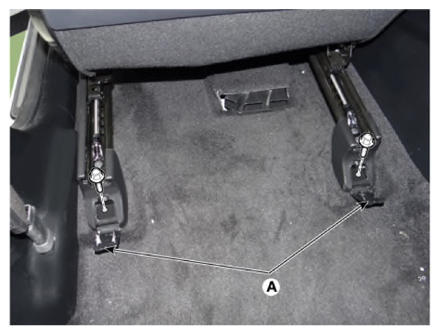

   [Rear]

   Courtesy of KIA MOTORS AMERICA, INC.

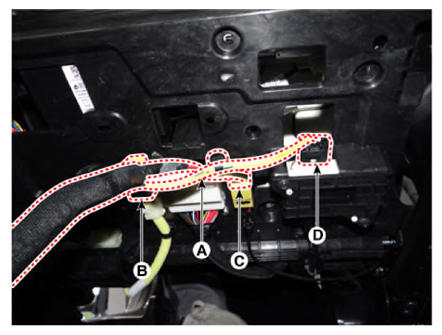

2. Separate the main connector (A), side airbag connector (B), front seat belt buckle connector (C) and ODS connector (D).

   [Driver's]

   Courtesy of KIA MOTORS AMERICA, INC.

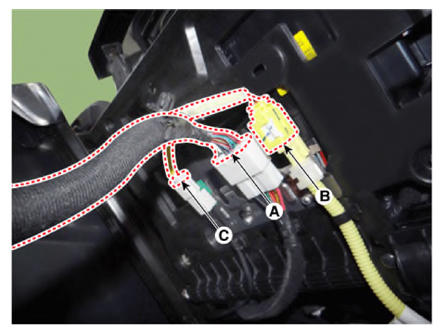

   [Passenger's]

   Courtesy of KIA MOTORS AMERICA, INC.

3. To install, reverse removal procedure.

Information

The installation procedures of seat mounting bolts

• Push the seat to the rear end of slides and initially tighten the front mounting bolts.
• Push the seat to the front end of slides and completely tighten the rear mounting bolts.
• Send the seat to the rear end again to completely tighten the front mounting bolts.
• Check the seat for smooth movement.
• For the non-automatic slide seats, check the seats are fixed at each designated fixing position.
