Repair Procedures: Replacement

  1. Disconnect the battery negative terminal.
  2. Turn the steering wheel so that the front wheels are facing straight ahead.
  3. Remove the driver airbag module.

    (Refer to Restraint - "DRIVER AIRBAG (DAB) MODULE ")

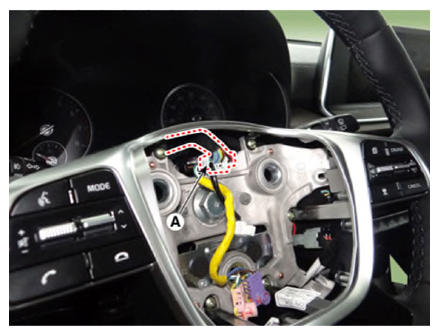

  4. Disconnect the steering wheel connector (A).
    G13310975Courtesy of KIA MOTORS AMERICA, INC.

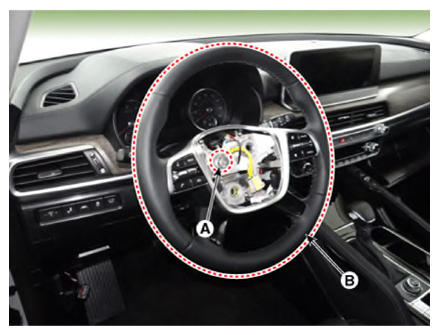

  5. Loosen the bolt (A) and then remove the steering wheel (B).

    Tightening torque:

    44.1 - 49.0 N.m (4.5 - 5.0 kgf.m, 32.5 - 36.2 lb.ft)

    G13310976Courtesy of KIA MOTORS AMERICA, INC.
    NOTE:
    • When removing the steering wheel, do not impact it by hammering as it may damage the steering column.
    • Do not reuse the steering lock bolt.

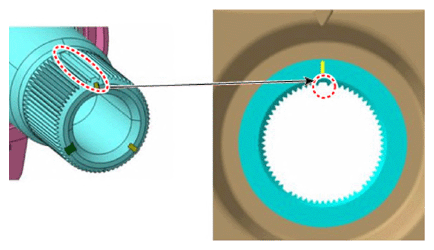

    • When assembling, match the gear teeth as the below illustration.
    G13310977Courtesy of KIA MOTORS AMERICA, INC.
  6. Install in the reverse order of removal.
