Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "VEHICLE S/W MANAGEMENT " of concerned component with KDS.
 Figures 1 to 10 below

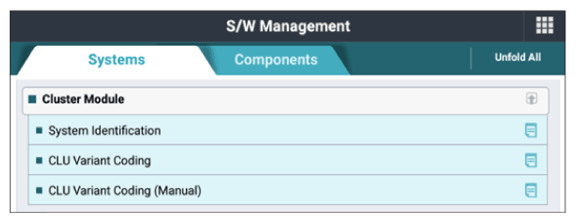

G13332971Courtesy of KIA MOTORS AMERICA, INC.

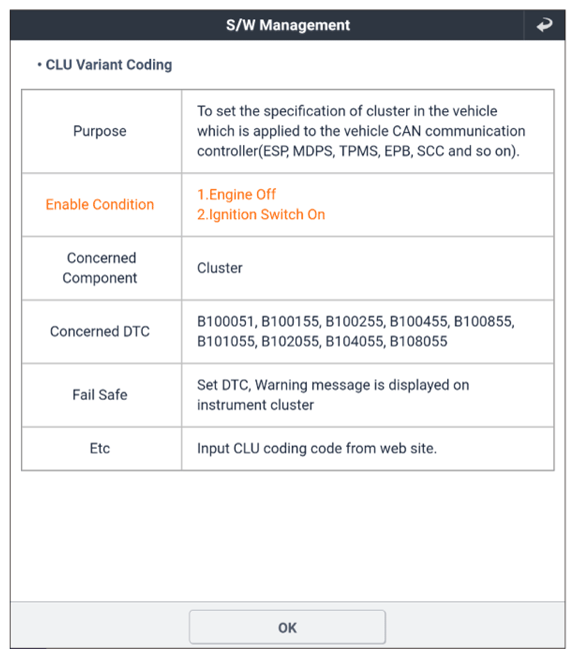

G13332972Courtesy of KIA MOTORS AMERICA, INC.

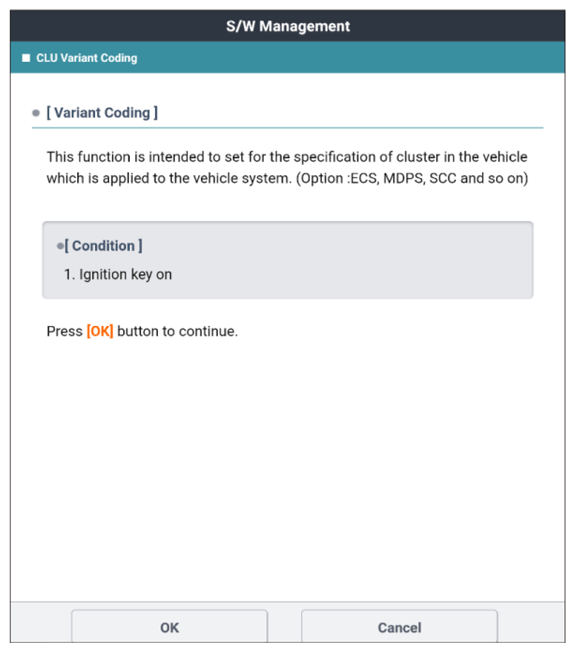

G13332973Courtesy of KIA MOTORS AMERICA, INC.

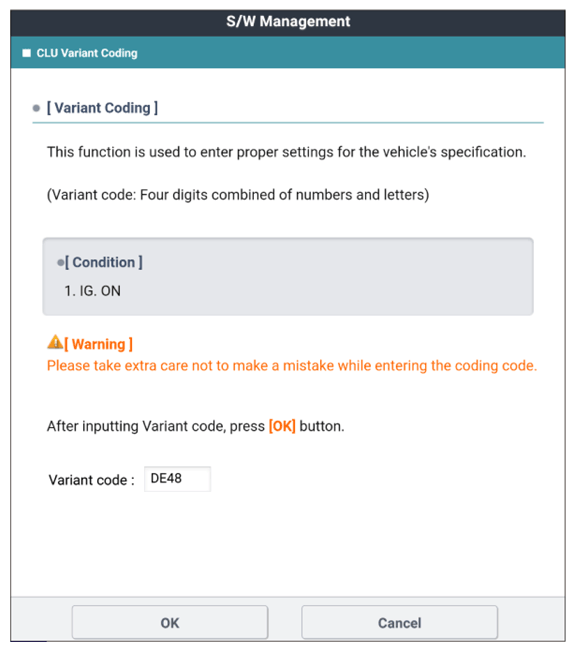

G13332974Courtesy of KIA MOTORS AMERICA, INC.

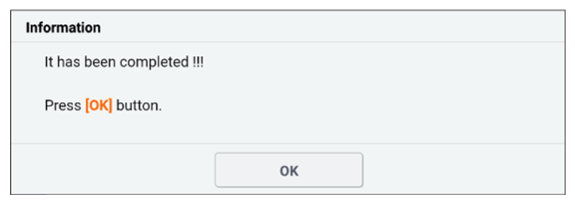

G13332975Courtesy of KIA MOTORS AMERICA, INC.

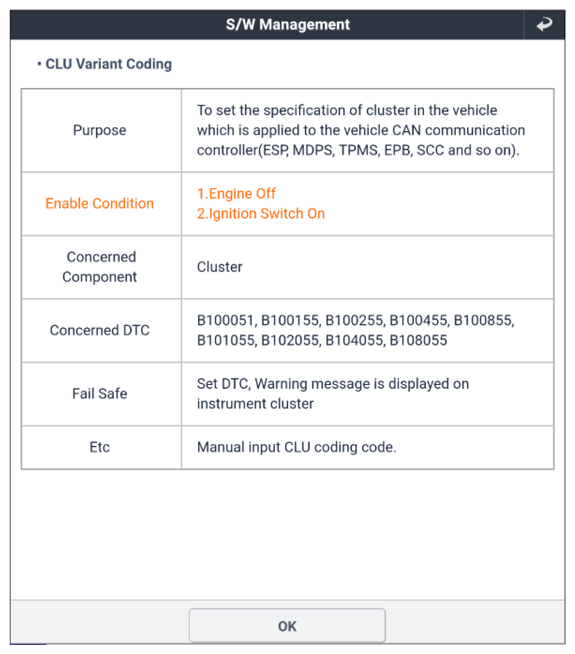

G13332976Courtesy of KIA MOTORS AMERICA, INC.

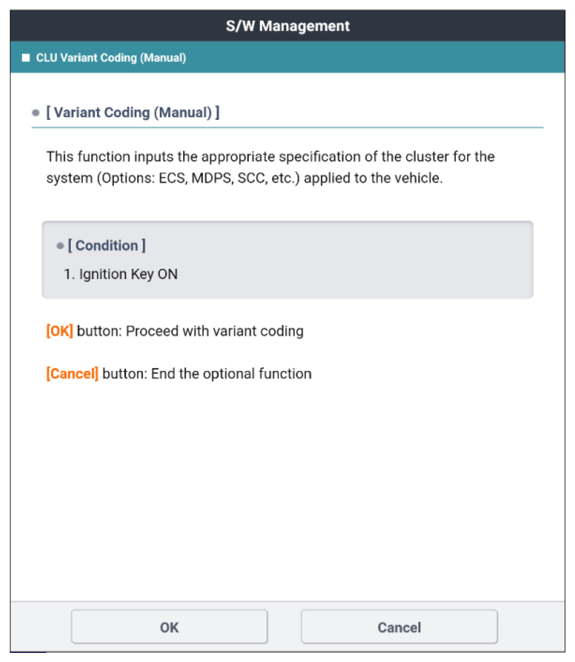

G13332977Courtesy of KIA MOTORS AMERICA, INC.

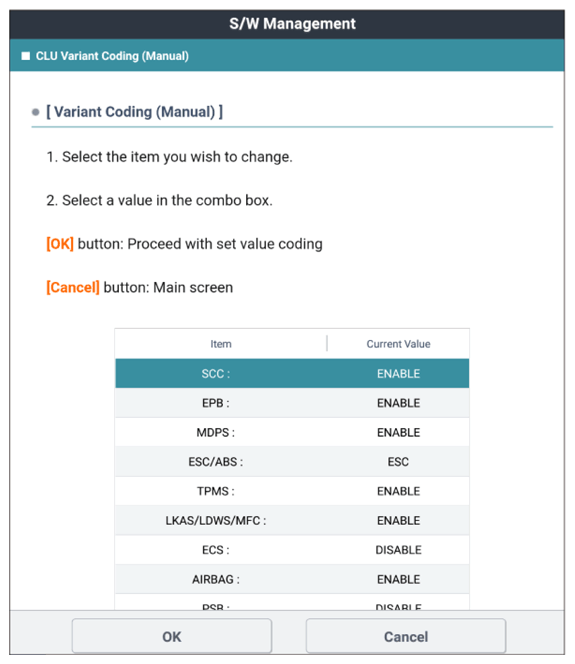

G13332978Courtesy of KIA MOTORS AMERICA, INC.

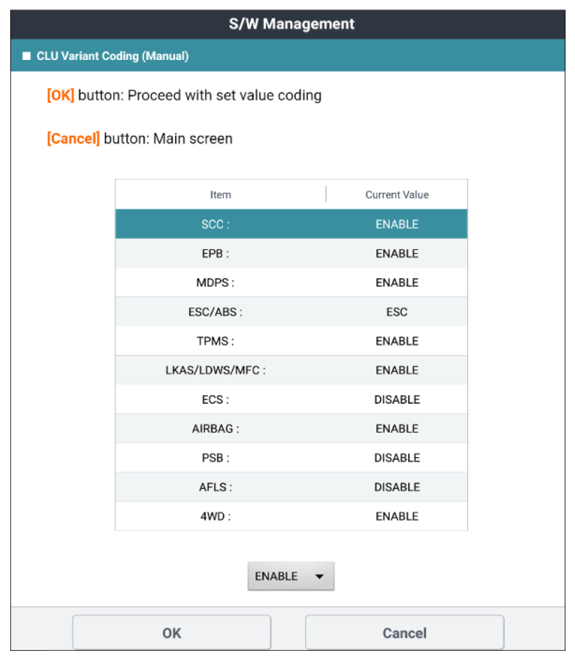

G13332979Courtesy of KIA MOTORS AMERICA, INC.

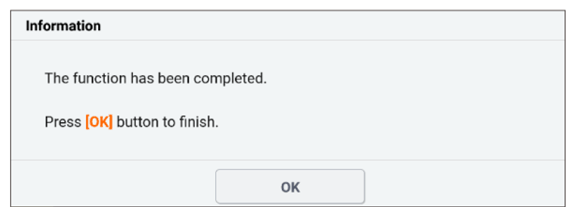

G13332980Courtesy of KIA MOTORS AMERICA, INC.
