Repair Procedures: Removal

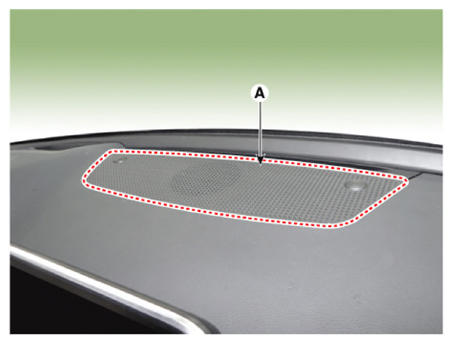

  1. Remove the center speaker grille (A).
    G13311900Courtesy of KIA MOTORS AMERICA, INC.

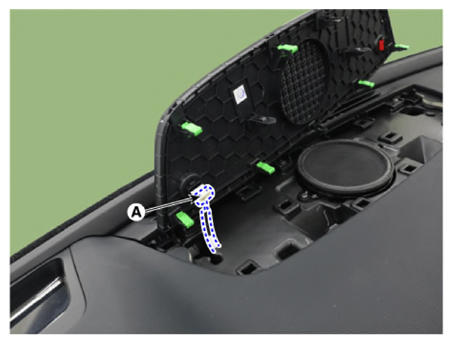

  2. Disconnect the connector (A) from the auto light sensor.
    G13311901Courtesy of KIA MOTORS AMERICA, INC.

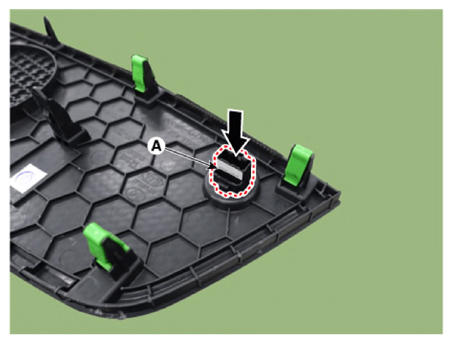

  3. Remove the auto light sensor (A) by pushing it in the direction of arrow.
G13311902Courtesy of KIA MOTORS AMERICA, INC.
