Repair Procedures: Replacement
- Remove the upper oil pan.
(Refer to Lubrication System - "OIL PAN ")

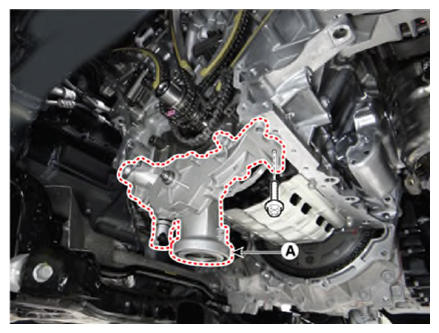

- Remove the oil pump (A).
Tightening torque:
20.6 - 32.4 N.m (2.1 - 2.3 kgf.m, 15.2 - 23.9 lb.ft)
- Install in the reverse order of removal.
(Refer to Lubrication System - "OIL PAN ")
Tightening torque:
20.6 - 32.4 N.m (2.1 - 2.3 kgf.m, 15.2 - 23.9 lb.ft)
