Components & Components Location: Components

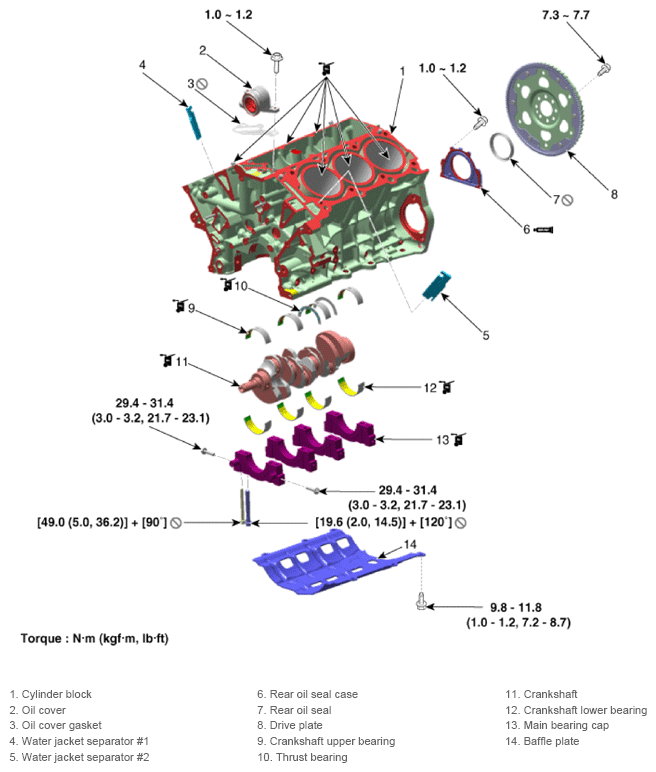

Fig 1: Cylinder Block Components With Torque Specification (1 Of 2)
G13309439Courtesy of KIA MOTORS AMERICA, INC.
Fig 2: Cylinder Block Components With Torque Specification (2 Of 2)
G13309440Courtesy of KIA MOTORS AMERICA, INC.
