Monitor KDS Data

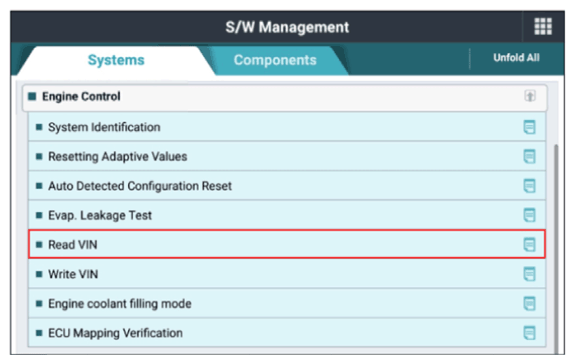

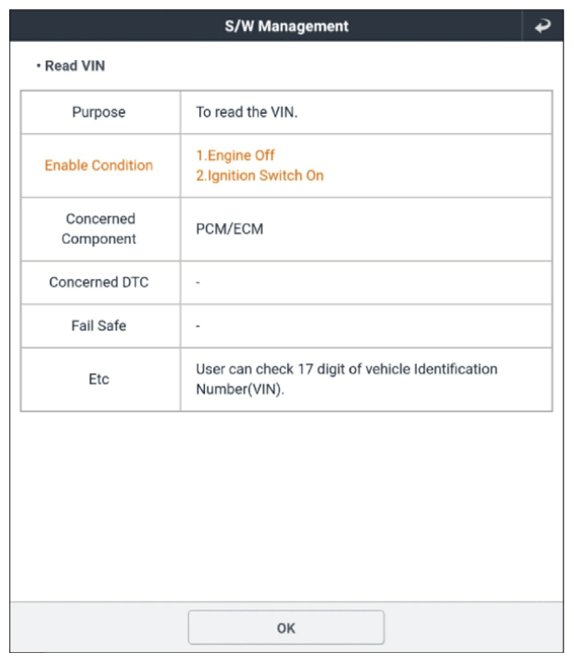

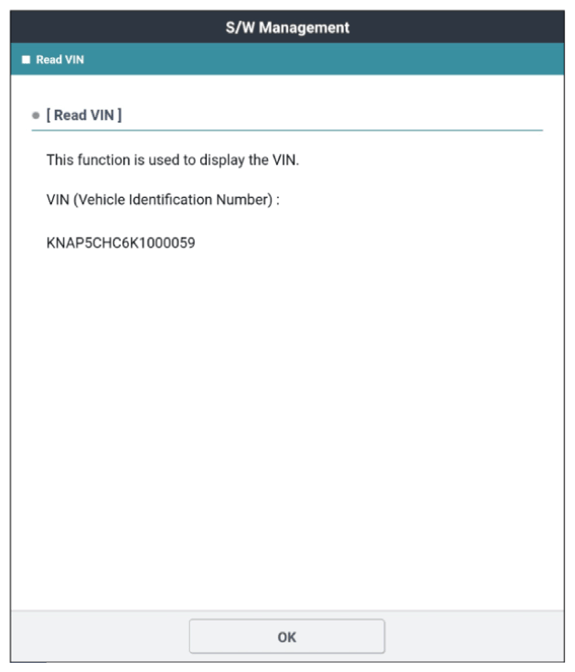

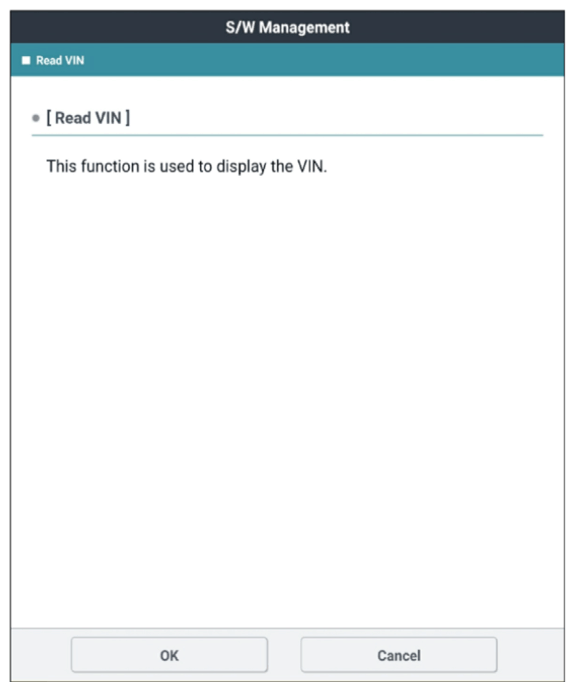

| Vehicle S/W Management: Read VIN procedure | ||
|---|---|---|
| Inspection Condition | Inspection Procedure | Reference |
|
|
Figures 1 to 4 below |
Good
- Make sure actual VIN and read VIN is matched each other.
- Go to "VERIFICATION OF REPAIR " procedure.
No Good
- Go to "Writing VIN on ECM" procedure below.

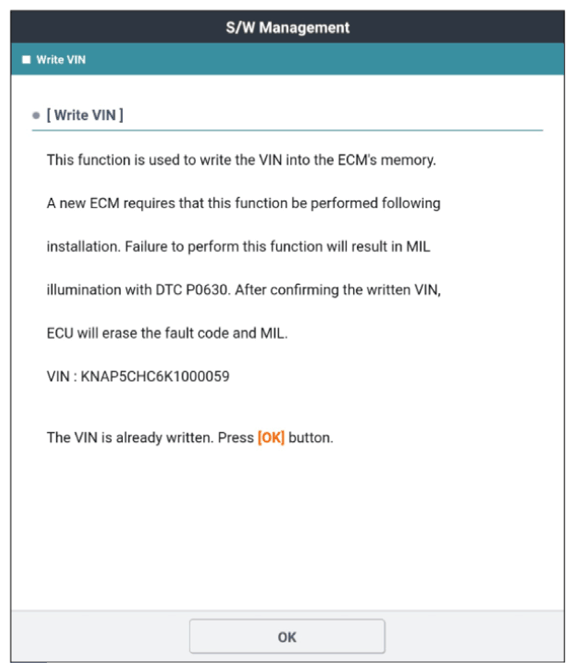

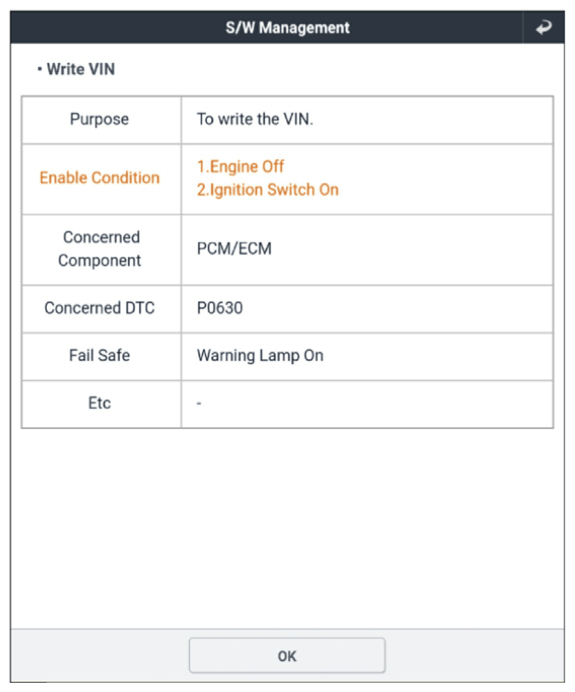

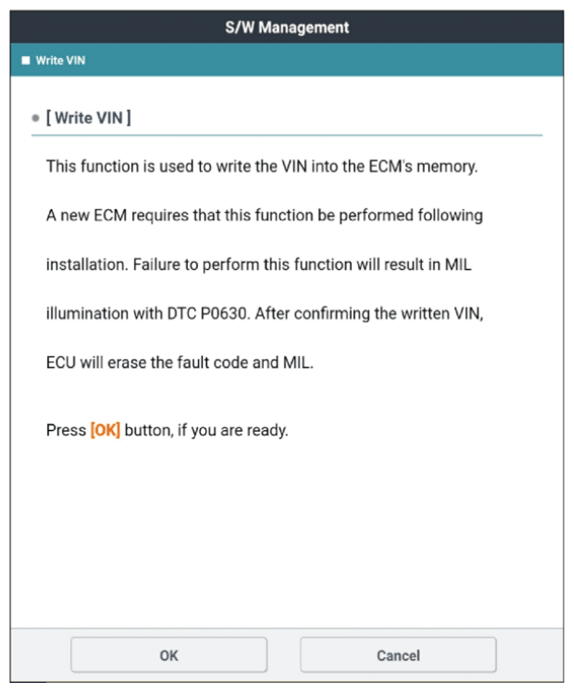

| Vehicle S/W Management: Write VIN procedure | ||
|---|---|---|
| Inspection Condition | Inspection Procedure | Reference |
|
|
Figures 1 to 4 below |
Good
- Go to "VERIFICATION OF REPAIR " procedure.
No Good
- Carefully re-do this troubleshooting guide steps.
- If no problems were found with the circuits or connectors, replace the ECM and go to "VERIFICATION OF REPAIR " procedure.
