Repair Procedures: Installation
WARNING: This page is about a different variant/trim than selected.
- Install in the reverse order of removal.
NOTE:

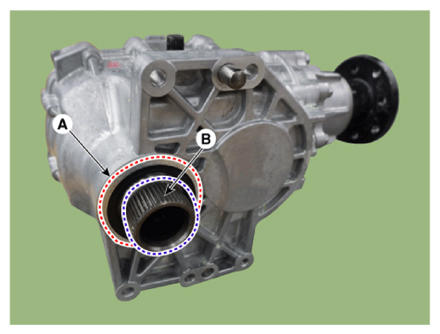

- Be careful not to damage the O-ring (A). If the O-ring is damaged, replace with a new one.
- Smear and cover splines (B) with molybdenum type high pressure grease.
GREASE SPL-1 or equivalent
 Courtesy of KIA MOTORS AMERICA, INC.
|

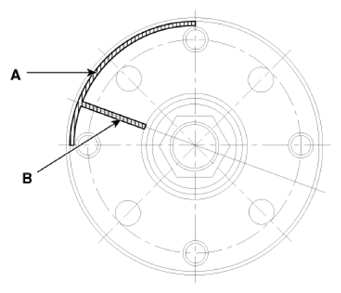

- Install the propeller shaft to be near runout marking (Transfer assembly 1ea (A), propeller shaft 1ea (B)) each other.
 Courtesy of KIA MOTORS AMERICA, INC.
|
