Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "VEHICLE S/W MANAGEMENT" of concerned component with KDS.
  3. Select "Clear Learning Value" in "Vehicle S/W management".
  4. After operation, perform the "VERIFICATION OF REPAIR " procedure.
 Fig. 1 to 4
G14807865Courtesy of KIA MOTORS AMERICA, INC.

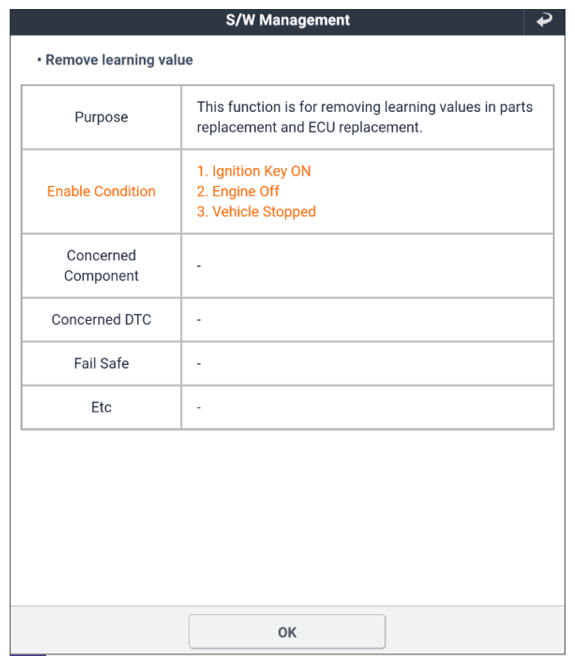

G14807866Courtesy of KIA MOTORS AMERICA, INC.

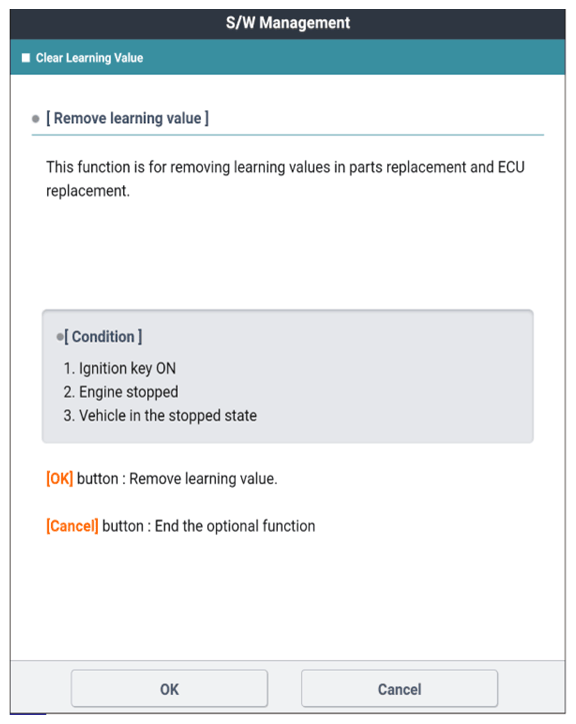

G14807867Courtesy of KIA MOTORS AMERICA, INC.
G14807868Courtesy of KIA MOTORS AMERICA, INC.
