Components & Components Location: Components

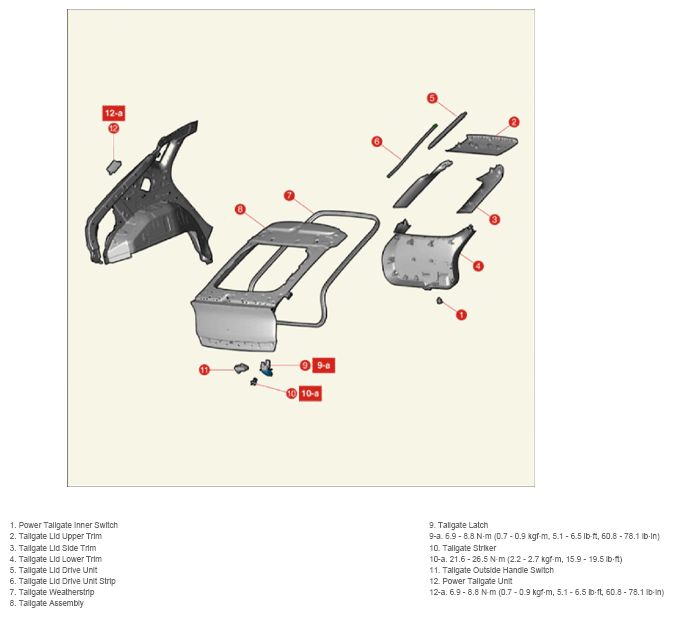

Fig 1: Power Tailgate System Components Location With Torque Specification
G14860819Courtesy of KIA MOTORS AMERICA, INC.
