Integrated Body Control Unit (IBU): Removal

  1. Disconnect the battery negative (-) terminal and the service interlock connector.

    (Refer to REMOVAL & INSTALLATION - 2WD

    (Refer to REMOVAL & INSTALLATION - 4WD

  2. Remove the glove box housing.

    (Refer to Body- "GLOVE BOX ")

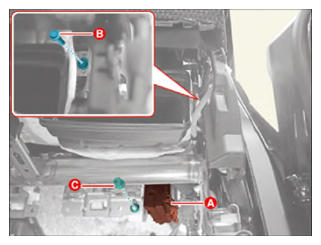

  3. Remove the integrated body control unit (IBU) (A) after removing the bolt (B) and nut (C).
    G14861629Courtesy of KIA MOTORS AMERICA, INC.

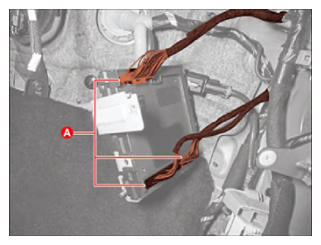

  4. Disconnect the integrated body control unit (IBU) connectors (A).
G14861630Courtesy of KIA MOTORS AMERICA, INC.
