Removal & Installation: Removal

Disconnect the battery negative (-) terminal and the service interlock connector.
(Refer to REMOVAL & INSTALLATION - 2WD

(Refer to REMOVAL & INSTALLATION - 4WD

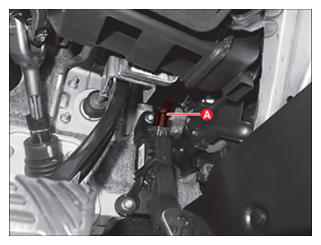

Disconnect the connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

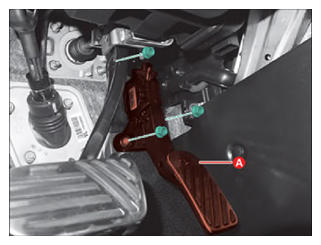

Remove the accelerator pedal module (A) after removing the nuts.
Tightening torque:

12.7-15.7 N.m (1.3- 1.6 kgf.m, 9.4 -11.6 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
