Front Motor

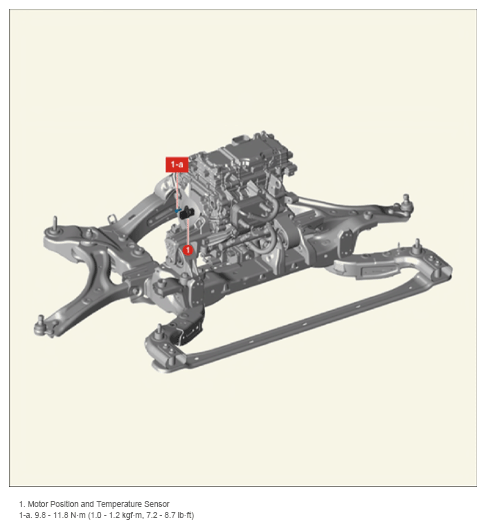

Fig 1: Front Motor Position And Temperature Sensor Components Location With Torque Specification
G14863544Courtesy of KIA MOTORS AMERICA, INC.
