Components & Components Location

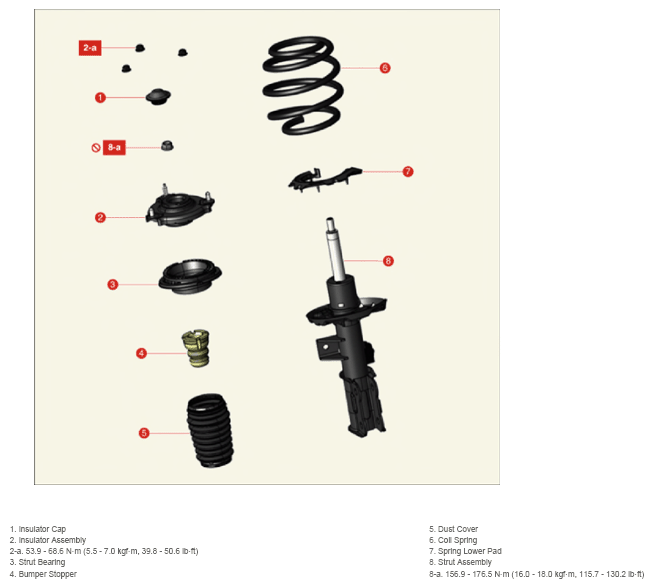

Fig 1: Front Strut Assembly Components Location With Torque Specification
G14860075Courtesy of KIA MOTORS AMERICA, INC.
