Components & Components Location: Component

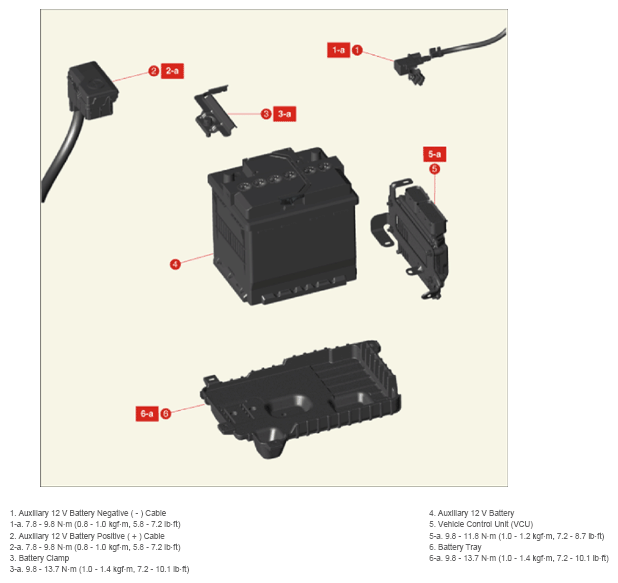

Fig 1: Vehicle Control Unit Components Location With Torque Specification
G14863594Courtesy of KIA MOTORS AMERICA, INC.
