Repair Procedures: Installation
NOTE:
- Put the vehicle on the level ground.
- Take out heavy luggage from the vehicles' seats or trunk.
- Set all tires according to the specified pressure.
- Check wheel alignment.
- Check that the front surface of the front radar is clean.

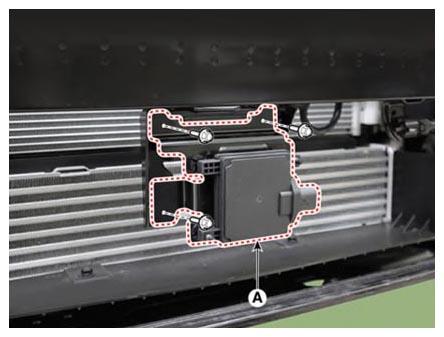

- Install the front radar unit (A) by tightening the bolts.
Tightening torque:
Bolt: 9 - 11 N.m (0.9 - 1.1 kgf.m, 6.6 - 8.1 lbf.ft)

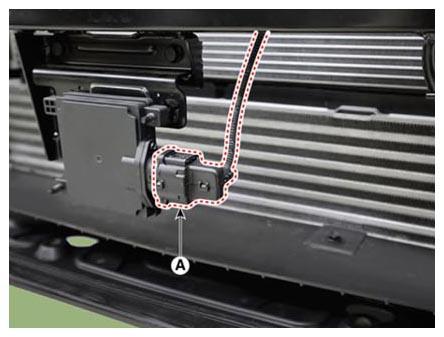

- Connect the front radar bolt connector (A).
- If the front radar was replaced with a new one, perform variant coding procedure by using the KDS.
- Check and align the front radar mounting angle.

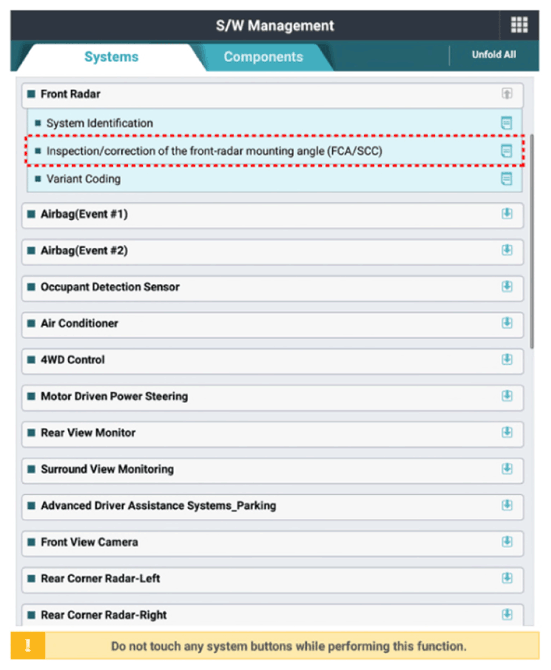

- Perform the

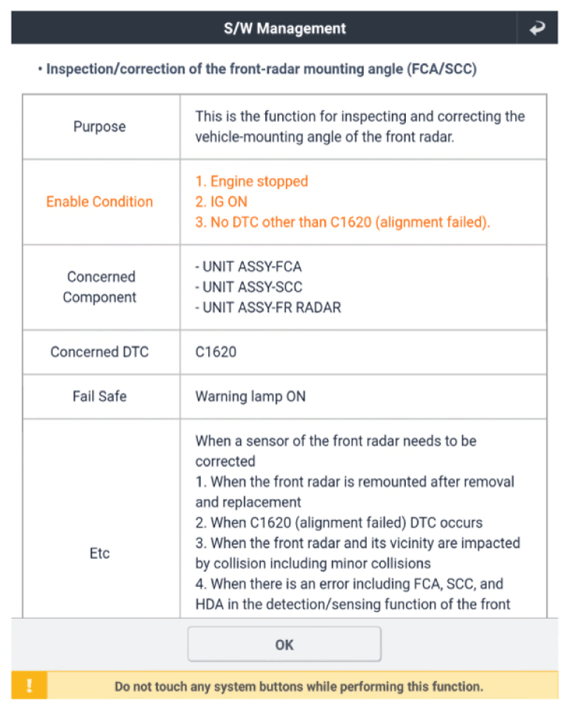

"inspection/correction of the front-radar mounting angle" using the KDS.

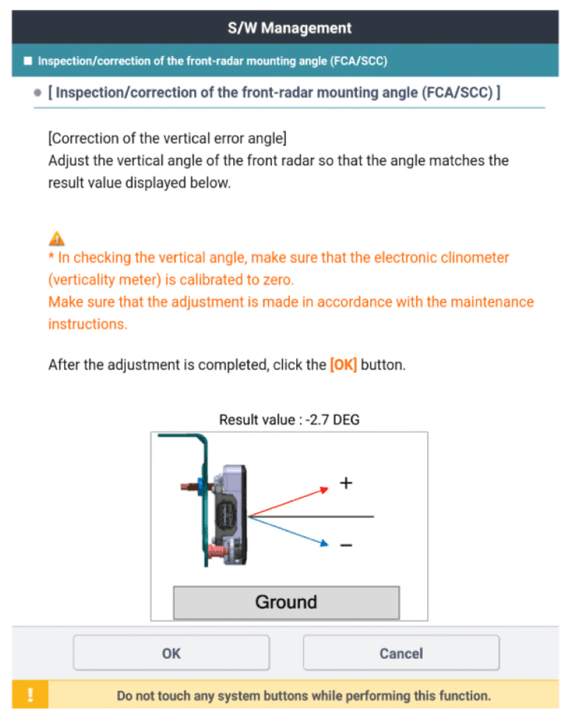

- Check for any compensated vertical angle errors in KDS.
Information
The final result value for the vertical angle should be -1°.

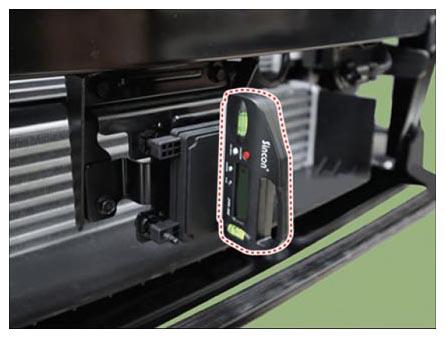

- Check the front radar vertical angle by using the vertical protractor (tiltmeter).NOTE:
- Make sure to perform zero setting before using vertical protractor. (perform this procedure before performing any adjustments)
- Be careful with +/- readings when finding true vertical using vertical protractor.

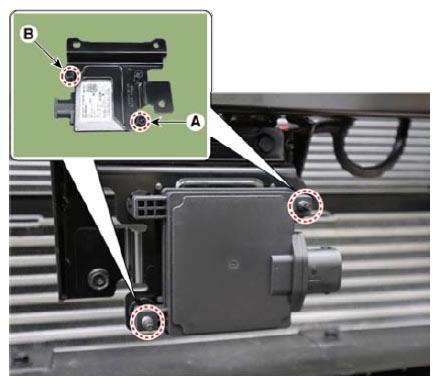

- Adjust to "target vertical angle" by turning adjusting screw (A) of front radar.
- turning clockwise: adjusting (+) angle
- turning counterclockwise: adjusting (-) angle
NOTE:- Adjustment of the bracket can be applied using manual pressure.
- Must recheck with vertical protractor if vertical angle is right after adjusting.
Number of adjustment screw rotation Correction angle Clockwise Counter clockwise 0.5 + 0.5° - 0.5° 1 + 1.0° - 1.0° 1.5 + 1.5° - 1.5° 2 + 2.0° - 2.0° 2.5 + 2.5° - 2.5° 3 + 3.0° - 3.0° 3.5 + 3.5° - 3.5° 4 + 4.0° - 4.0° 4.5 + 4.5° - 4.5° 5 + 5.0° -5.0° - Perform the
"inspection/correction of the front-radar mounting angle" using the KDS.
- Install the front bumper assembly.
(Refer to Body - "FRONT BUMPER ASSEMBLY ")
- Perform the front radar inspection/correction procedure by using the SSTs.
(Refer to Front Radar Unit - "ADJUSTMENT ")
