Repair Procedures: Disassembly

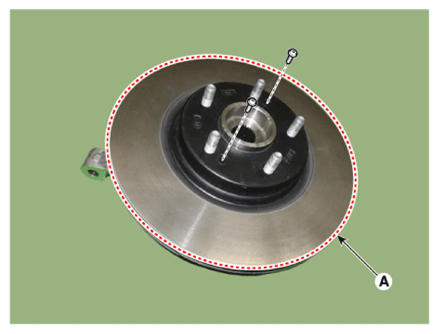

Remove the front brake disc (A) after removing the screws.
Tightening torque:

4.9 - 5.9 N.m (0.5 - 0.6 kgf.m, 3.6 - 4.3 lb.ft, 43.4 - 52.1 lb.in)

Courtesy of KIA MOTORS AMERICA, INC.

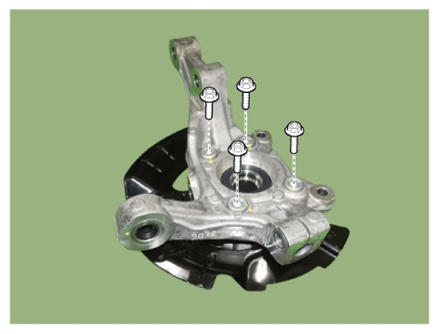

Remove the hub bearing mounting bolts.
Tightening torque:

127.5 - 147.1 N.m (13.0 - 15.0 kgf.m, 94.0 - 108.5 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

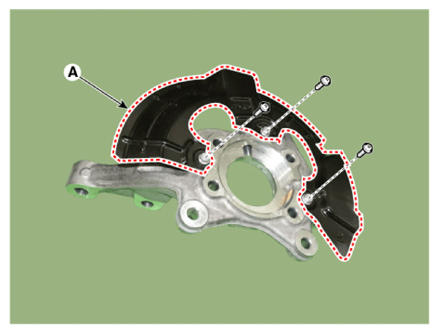

Remove the dust cover (A) from the knuckle.
Tightening torque:

6.9 - 10.8 N.m (0.7 - 1.1 kgf.m, 5.1 - 8.0 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
