Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS/GDS to Data Link Connector (DLC).
  2. Perform "VEHICLE S/W MANAGEMENT" of concerned component with KDS/GDS.
 Fig.1 to 2
Fig.3 to 5
CAUTION: Using KDS/GDS performs the "Vehicle S/W Management" → "CLU Variant Coding" item.
The DTC is erased when programming is properly performed.

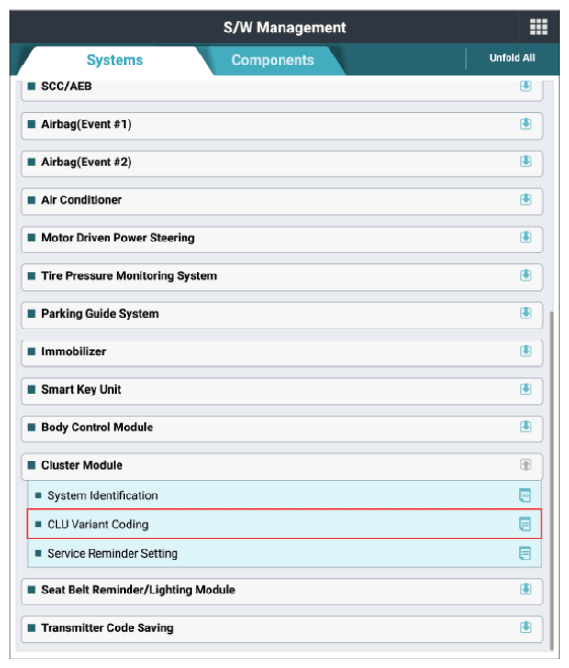

G13707820Courtesy of KIA MOTORS AMERICA, INC.
G13707821Courtesy of KIA MOTORS AMERICA, INC.

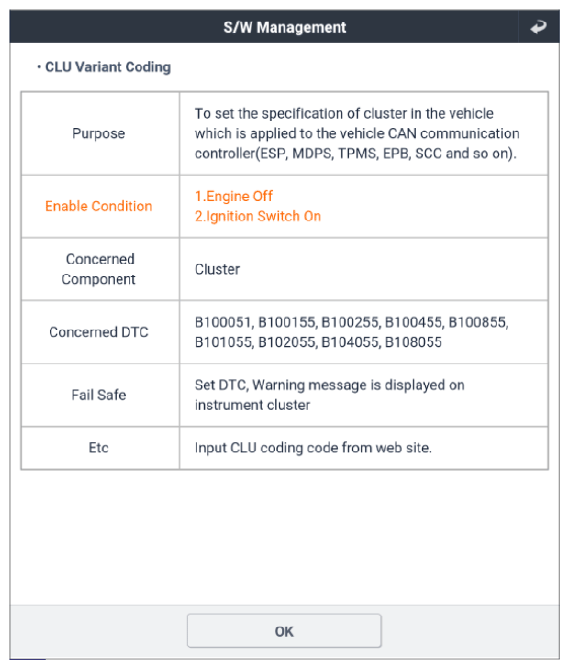

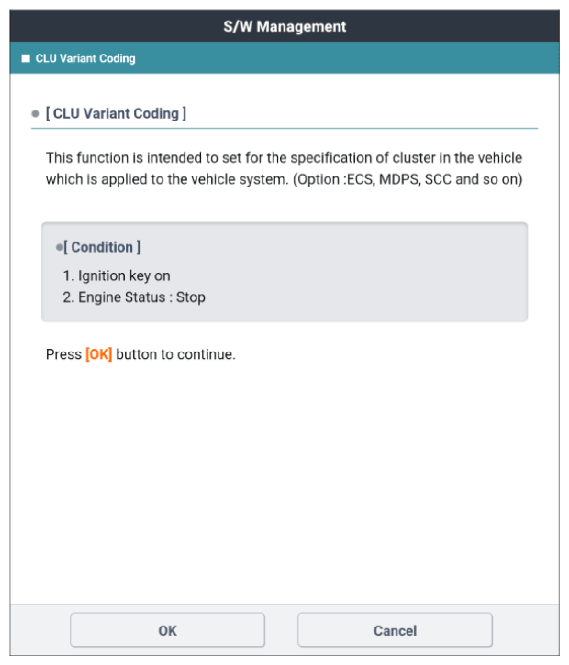

G13707822Courtesy of KIA MOTORS AMERICA, INC.

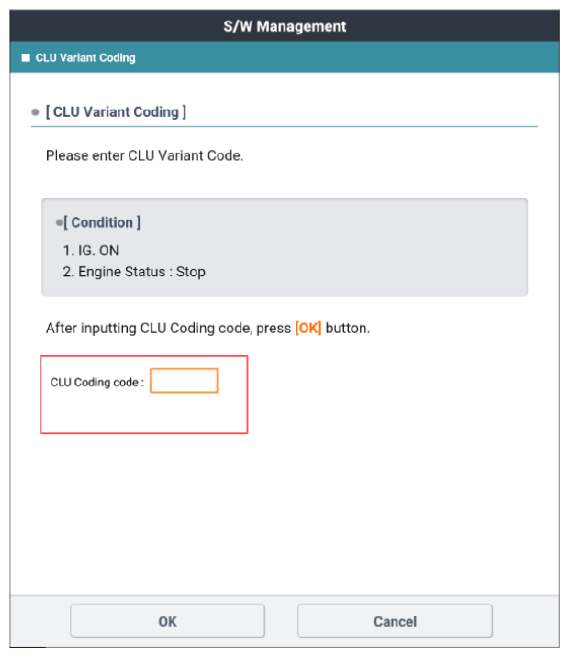

G13707823Courtesy of KIA MOTORS AMERICA, INC.
G13707824Courtesy of KIA MOTORS AMERICA, INC.

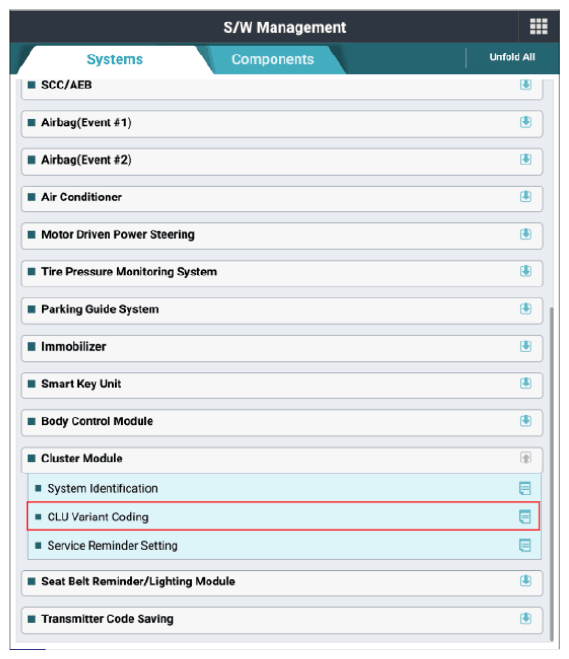

G13707825Courtesy of KIA MOTORS AMERICA, INC.

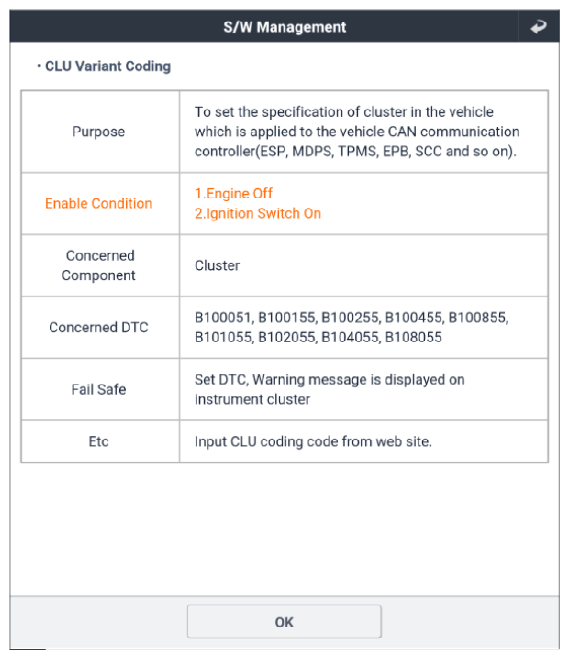

G13707826Courtesy of KIA MOTORS AMERICA, INC.

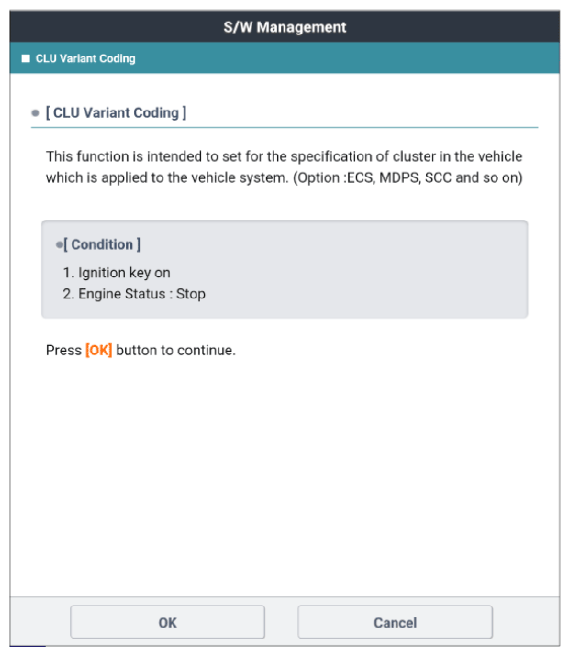

G13707827Courtesy of KIA MOTORS AMERICA, INC.

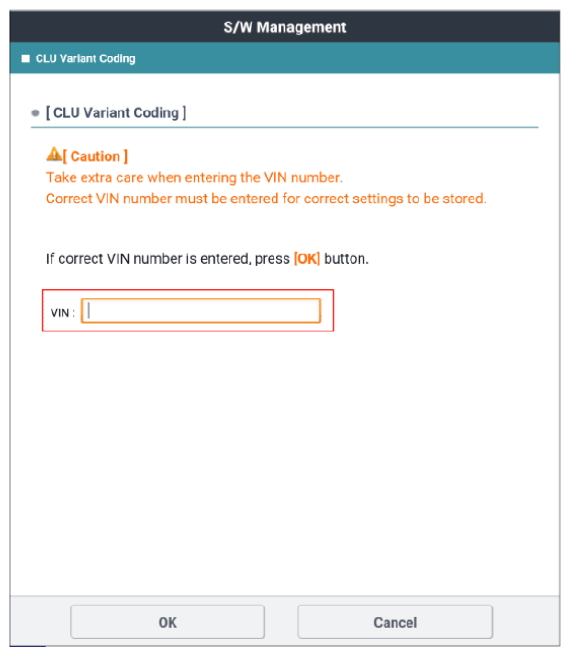

G13707828Courtesy of KIA MOTORS AMERICA, INC.
G13707829Courtesy of KIA MOTORS AMERICA, INC.
