Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS/GDS to Data Link Connector (DLC).
  2. Perform "VEHICLE S/W MANAGEMENT" of concerned component with KDS/GDS.
 Fig.1 to 2
Fig.3 to 5
CAUTION: Using KDS/GDS performs the "Vehicle S/W Management" → "CLU Variant Coding" item.
The DTC is erased when programming is properly performed.

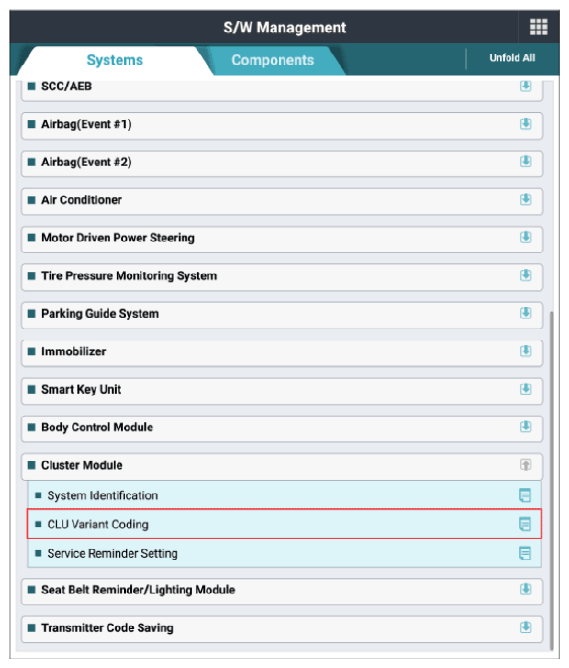

G13707848Courtesy of KIA MOTORS AMERICA, INC.

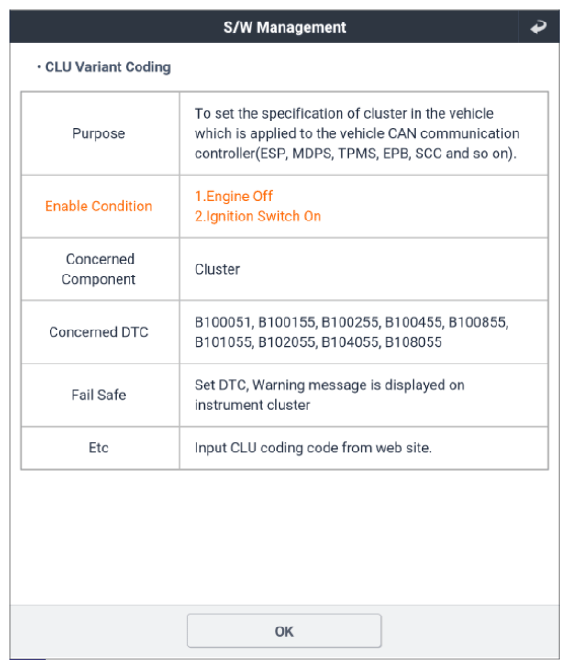

G13707849Courtesy of KIA MOTORS AMERICA, INC.

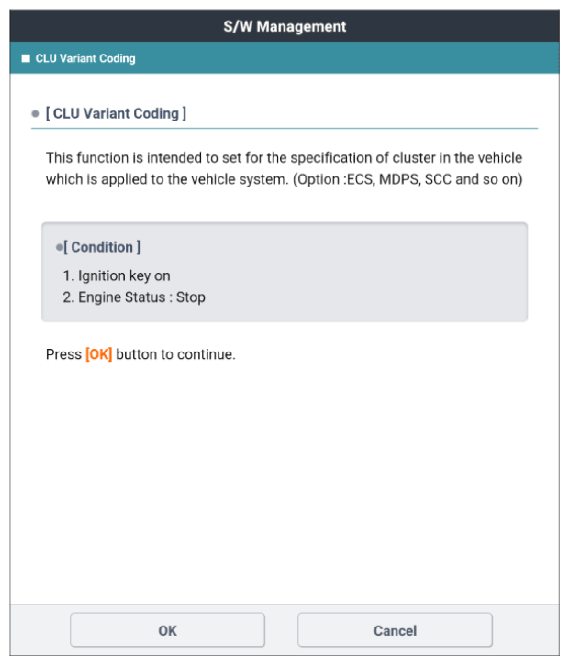

G13707850Courtesy of KIA MOTORS AMERICA, INC.

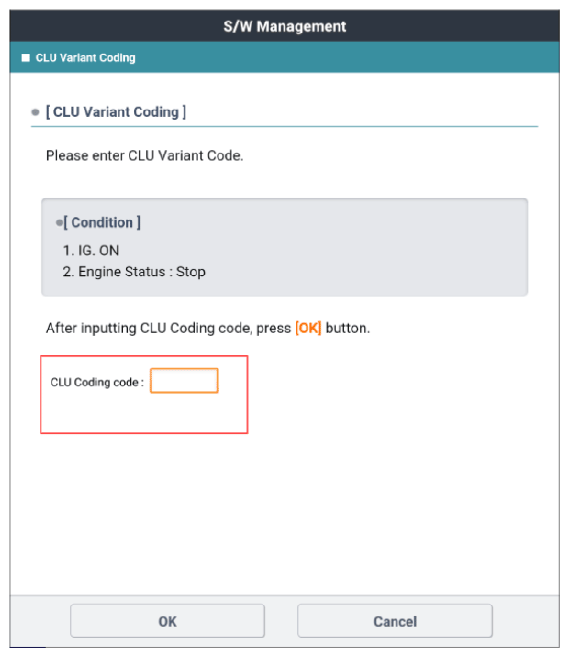

G13707851Courtesy of KIA MOTORS AMERICA, INC.
G13707852Courtesy of KIA MOTORS AMERICA, INC.

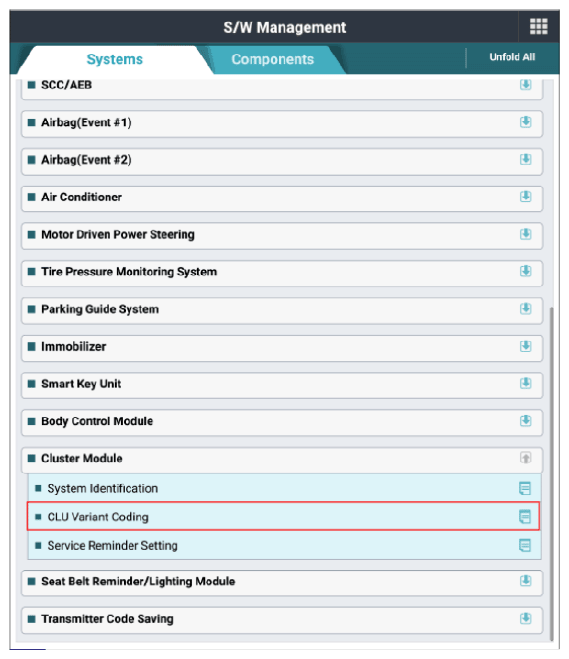

G13707853Courtesy of KIA MOTORS AMERICA, INC.

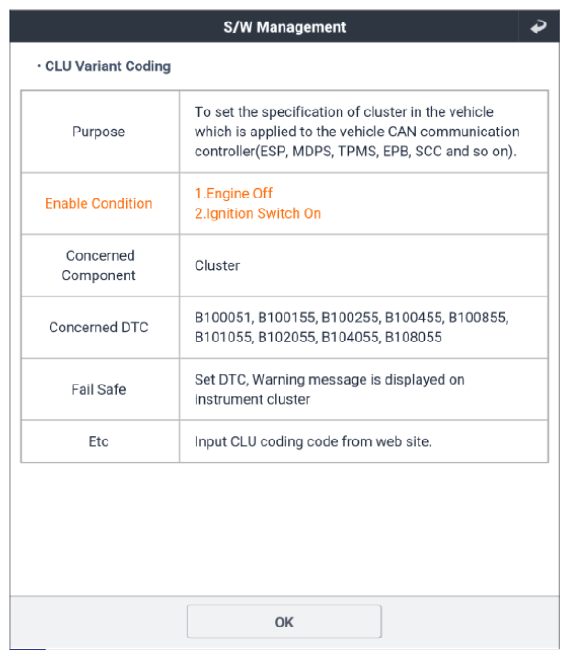

G13707854Courtesy of KIA MOTORS AMERICA, INC.

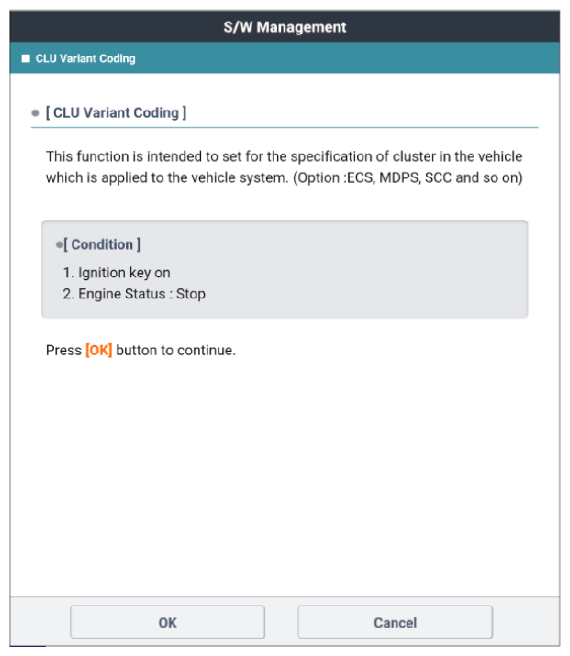

G13707855Courtesy of KIA MOTORS AMERICA, INC.

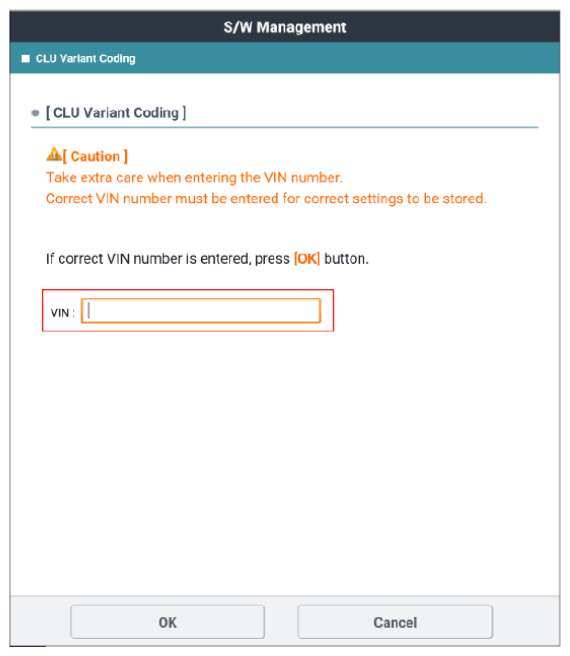

G13707856Courtesy of KIA MOTORS AMERICA, INC.
G13707857Courtesy of KIA MOTORS AMERICA, INC.
