Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS/GDS to Data Link Connector (DLC).
  2. Perform "VEHICLE S/W MANAGEMENT" of concerned component with KDS/GDS.
 Fig.1 to 2
Fig.3 to 5
CAUTION: Using KDS/GDS performs the "Vehicle S/W Management" → "CLU Variant Coding" item.
The DTC is erased when programming is properly performed.

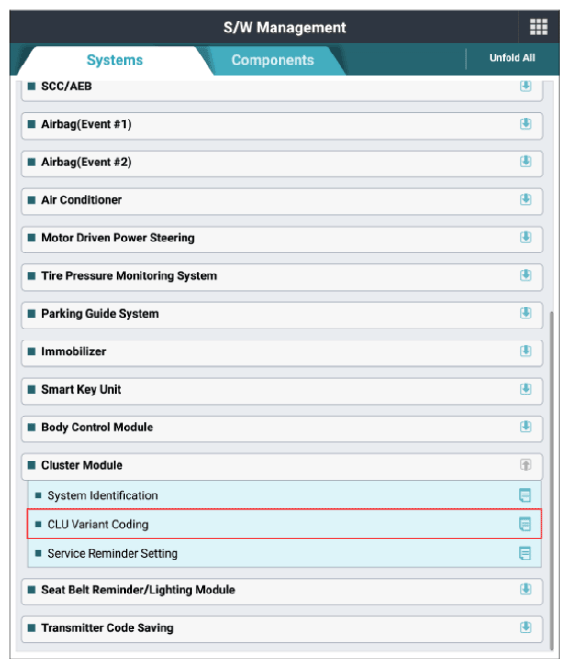

G13707960Courtesy of KIA MOTORS AMERICA, INC.

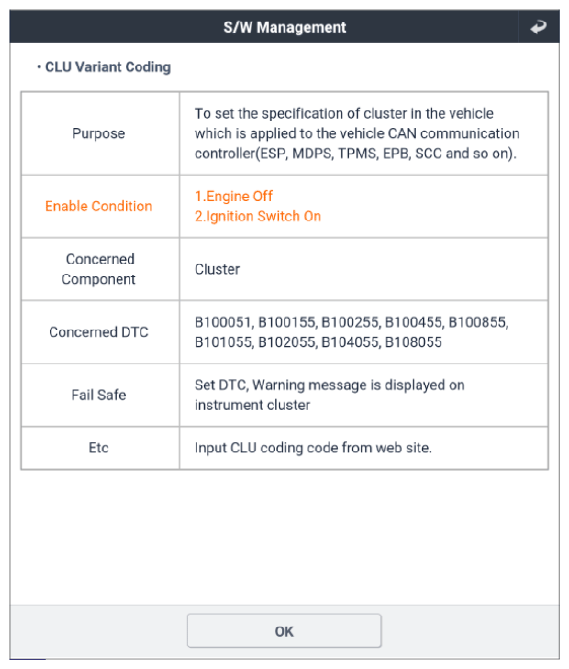

G13707961Courtesy of KIA MOTORS AMERICA, INC.

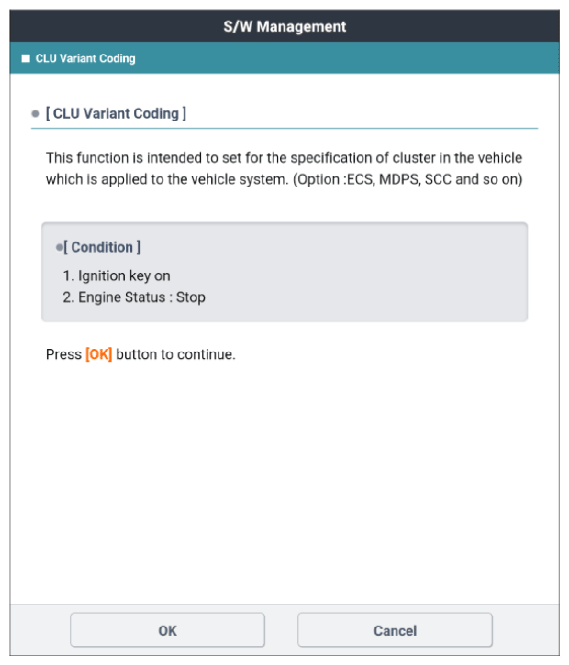

G13707962Courtesy of KIA MOTORS AMERICA, INC.

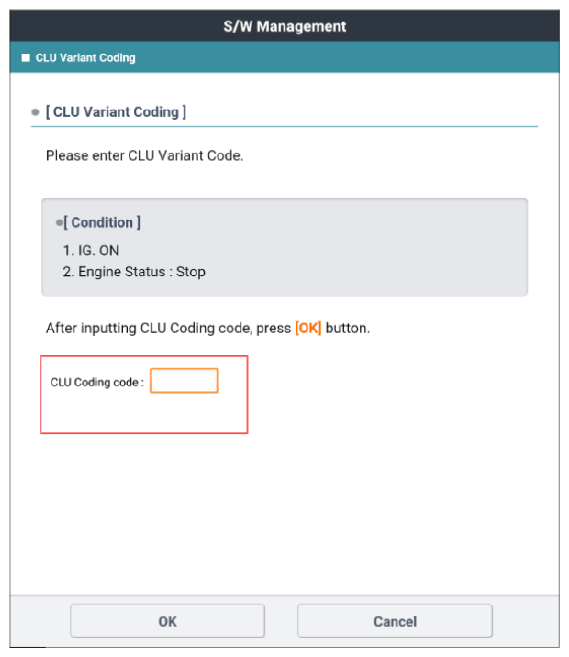

G13707963Courtesy of KIA MOTORS AMERICA, INC.
G13707964Courtesy of KIA MOTORS AMERICA, INC.

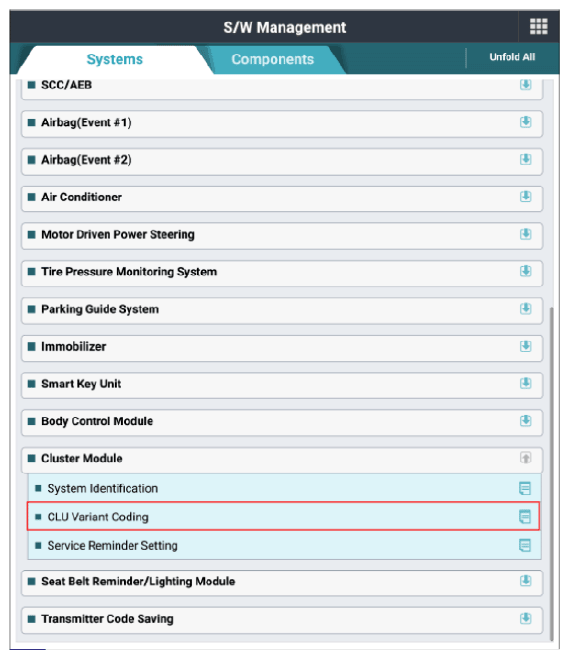

G13707965Courtesy of KIA MOTORS AMERICA, INC.

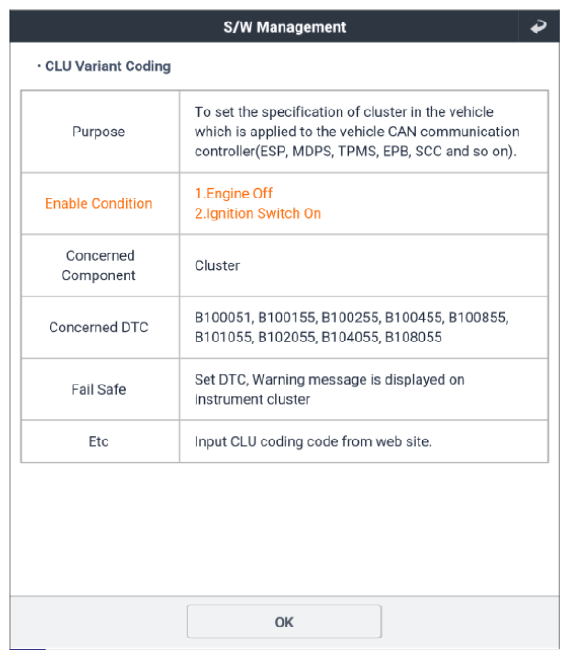

G13707966Courtesy of KIA MOTORS AMERICA, INC.

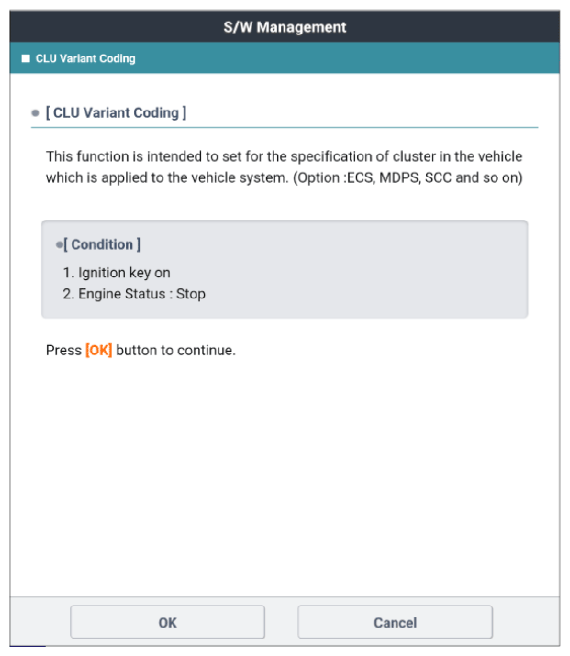

G13707967Courtesy of KIA MOTORS AMERICA, INC.

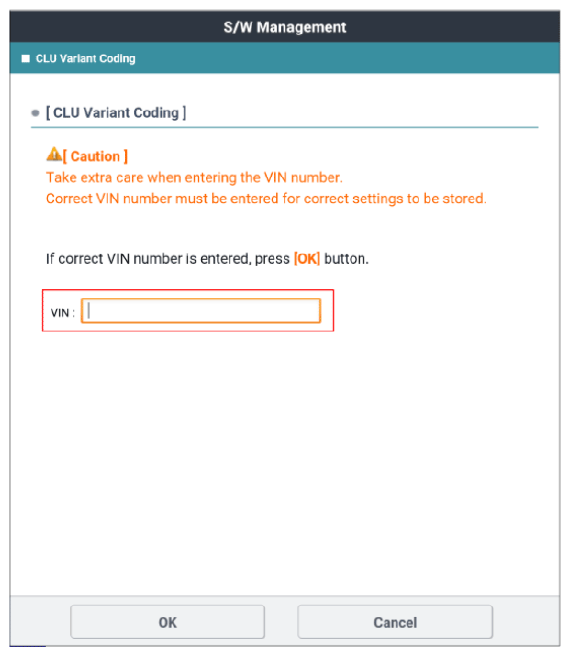

G13707968Courtesy of KIA MOTORS AMERICA, INC.
G13707969Courtesy of KIA MOTORS AMERICA, INC.
