Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS/GDS to Data Link Connector (DLC).
  2. Perform "VEHICLE S/W MANAGEMENT" of concerned component with KDS/GDS.
 Fig.1 to 2
Fig.3 to 5
CAUTION: Using KDS/GDS performs the "Vehicle S/W Management" → "CLU Variant Coding" item.
The DTC is erased when programming is properly performed.

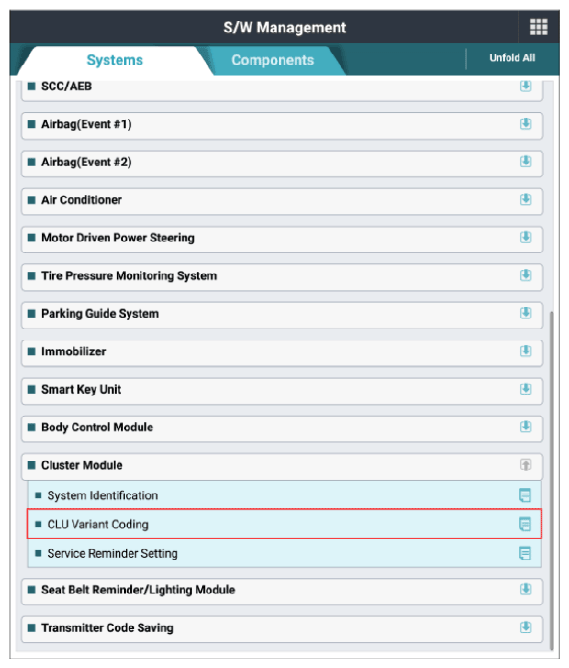

G13707988Courtesy of KIA MOTORS AMERICA, INC.

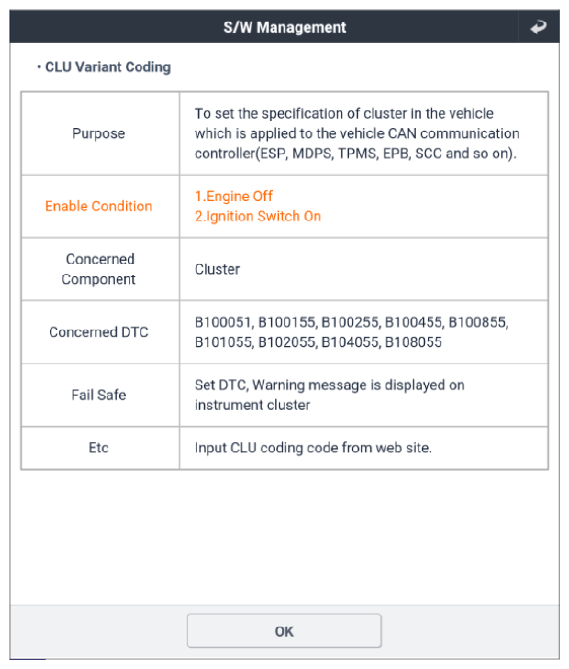

G13707989Courtesy of KIA MOTORS AMERICA, INC.

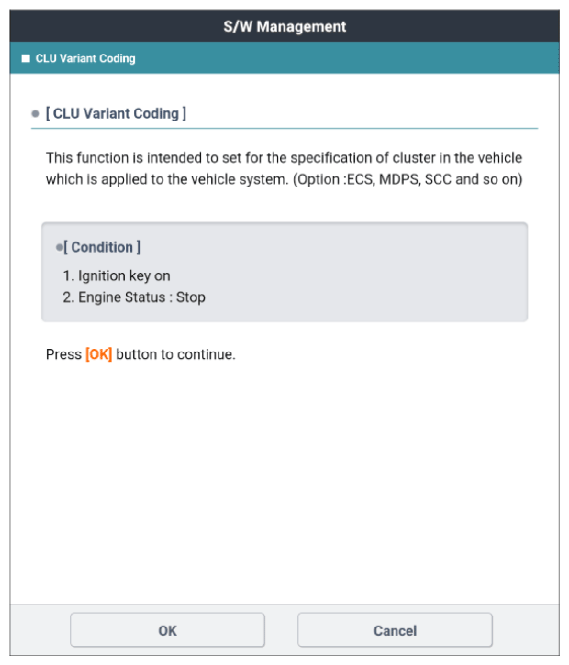

G13707990Courtesy of KIA MOTORS AMERICA, INC.

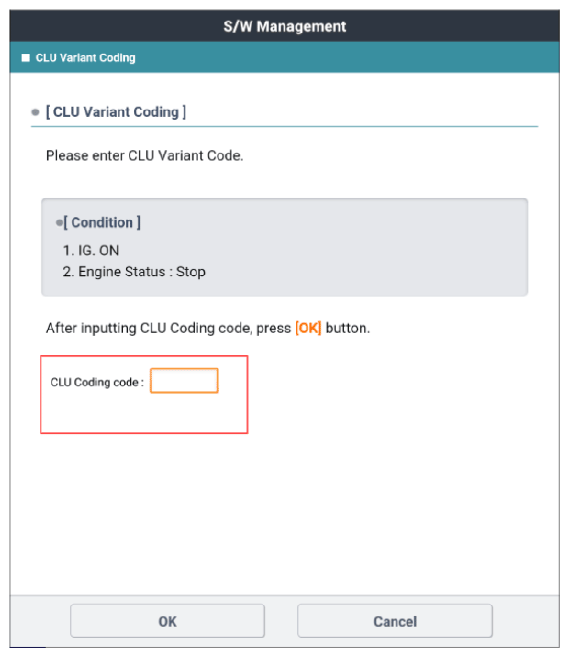

G13707991Courtesy of KIA MOTORS AMERICA, INC.
G13707992Courtesy of KIA MOTORS AMERICA, INC.

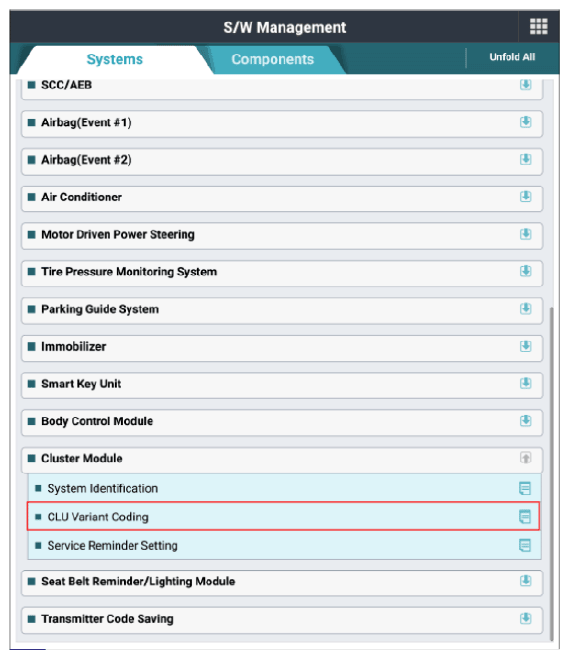

G13707993Courtesy of KIA MOTORS AMERICA, INC.

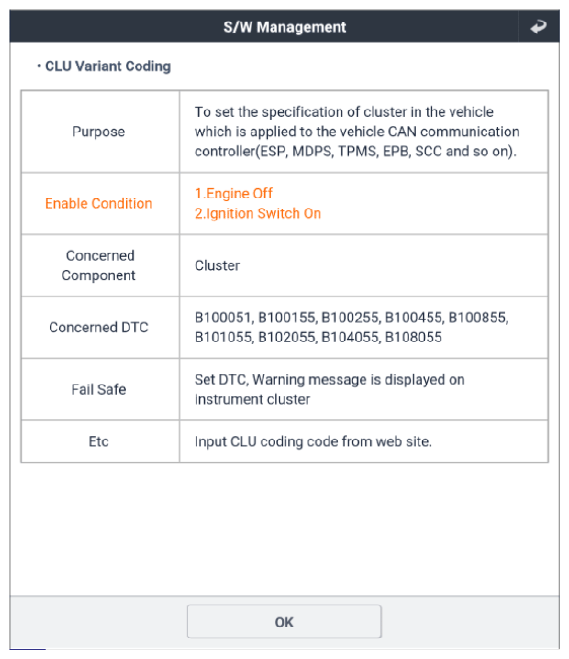

G13707994Courtesy of KIA MOTORS AMERICA, INC.

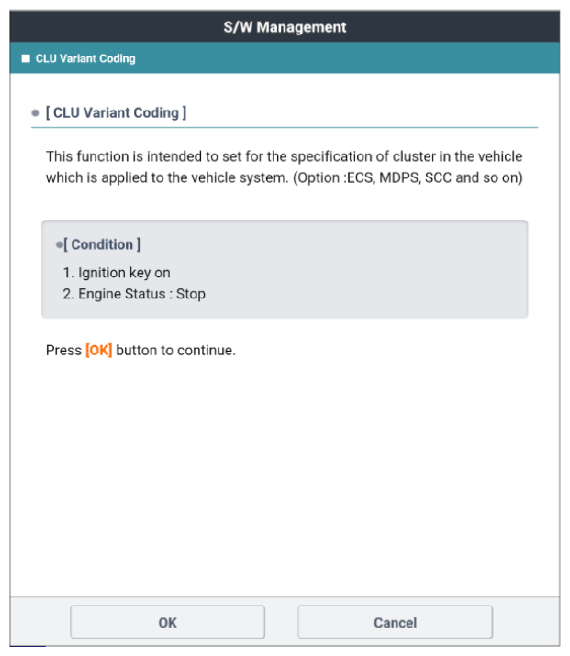

G13707995Courtesy of KIA MOTORS AMERICA, INC.

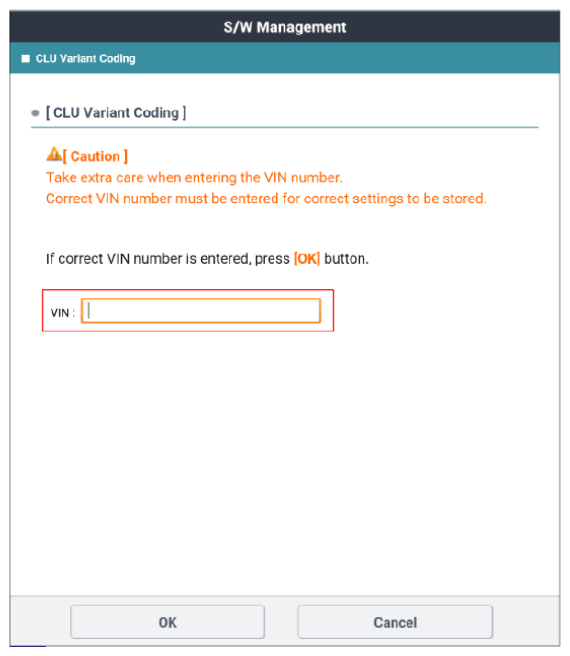

G13707996Courtesy of KIA MOTORS AMERICA, INC.
G13707997Courtesy of KIA MOTORS AMERICA, INC.
