Repair Procedures: Installation

WARNING: This page is about a different variant/trim than selected.

NOTE:

Install the component within the specified torque values.
Note that internal damage may occur when the component is dropped. If the component has been dropped, inspect before installing.

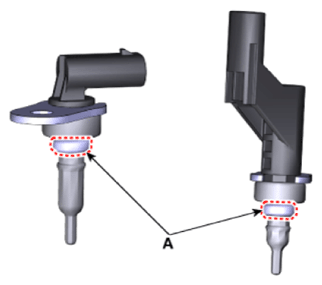

Apply the engine coolant to the O-ring (A).

Courtesy of KIA MOTORS AMERICA, INC.

Install in the reverse order of removal.
Fill the engine cooling system with coolant.
(Refer to Engine Mechanical System - "COOLANT ")
