Repair Procedures: Inspection: Buzzer
WARNING: This page is about a different variant/trim than selected.
- Disconnect the negative (-) battery terminal.
(Refer to Engine Electrical System - "AUXILIARY BATTERY ")
- Remove the front wheel guard.
(Refer to Body - "FRONT WHEEL GUARD ")

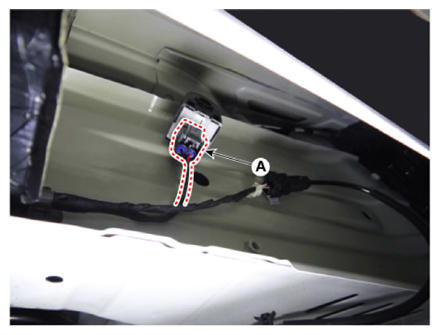

- Disconnect the buzzer connector (A).
- Test the buzzer by connecting battery power to the terminal 2 and ground the terminal 1.
