Repair Procedures: Removal

CAUTION: Do not remove the camshaft position sensor during engine running or right after engine stops, or a scald by the flow out engine oil may occur.

Disconnect the negative (-) battery terminal.
(Refer to Engine Electrical System - "AUXILIARY BATTERY ")
Disconnect the Camshaft Position Sensor (CMPS) connector (A).

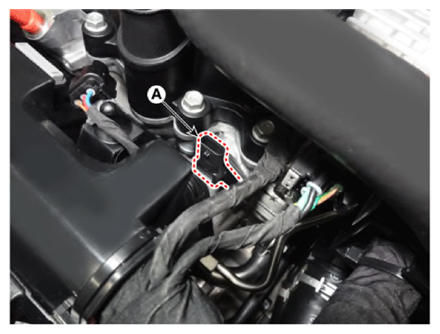

[Intake]

Courtesy of KIA MOTORS AMERICA, INC.

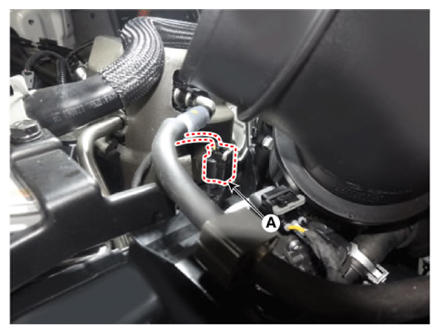

[Exhaust]

Courtesy of KIA MOTORS AMERICA, INC.
Remove the CMPS by removing the mounting bolt (A).
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

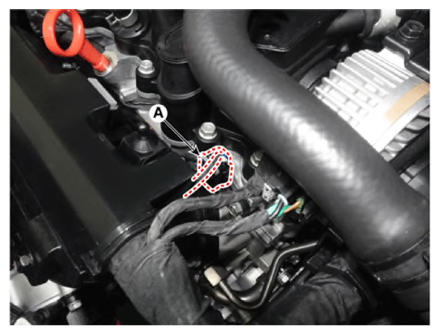

[Intake]

Courtesy of KIA MOTORS AMERICA, INC.

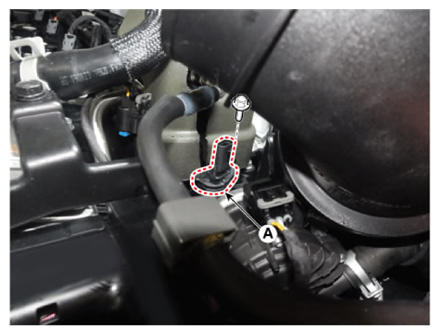

[Exhaust]

Courtesy of KIA MOTORS AMERICA, INC.
