Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine Control System (PHEV)
>>
ETC (Electronic Throttle Control) System
>>
Schematic Diagrams
>>
Connector and Terminal Function
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

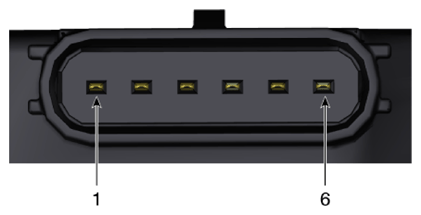

Connector and Terminal Function
Courtesy of KIA MOTORS AMERICA, INC.
Pin
Function
1
Motor (+)
2
Motor (-)
3
5V
4
TPS 2
5
Ground
6
TPS 1
