Repair Procedures: Removal

Disconnect the negative (-) battery terminal.
(Refer to Engine Electrical System - "AUXILIARY BATTERY ")
Remove the air duct and air cleaner.
(Refer to Engine Mechanical System - "AIR CLEANER ")

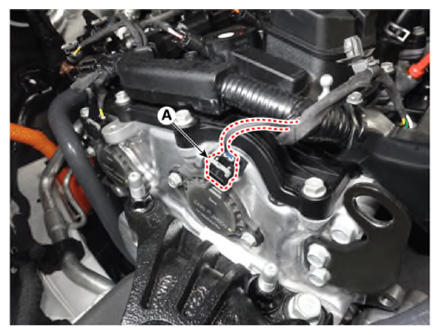

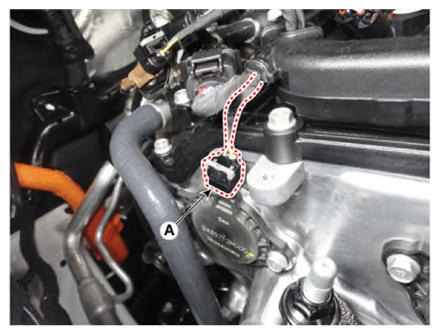

Disconnect the Variable Force Solenoid (VFS) connector (A).
Intake

Courtesy of KIA MOTORS AMERICA, INC.

Exhaust

Courtesy of KIA MOTORS AMERICA, INC.

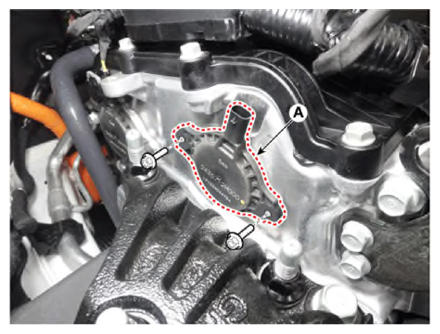

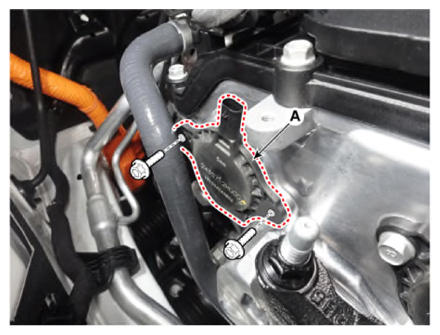

Remove the VFS (A) after removing the mounting bolts.
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)
