Components & Components Location: Component

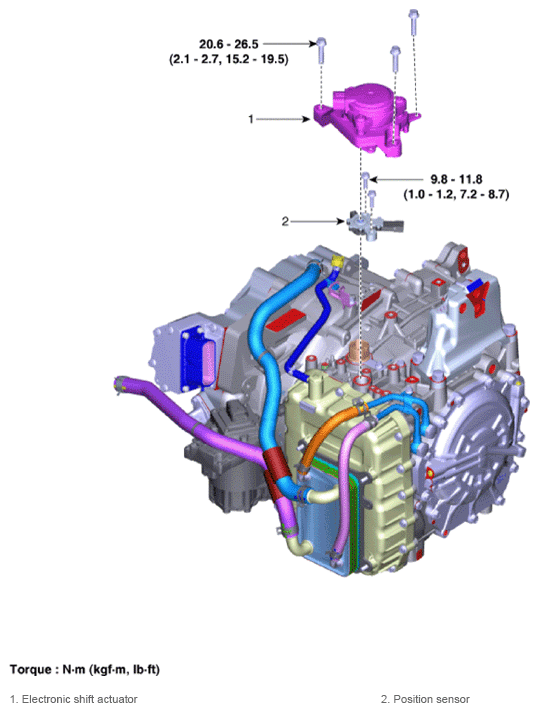

Fig 1: Position Sensor Components Location With Torque Specification
G14957296Courtesy of KIA MOTORS AMERICA, INC.
