Repair Procedures: Removal

Shift transmission to "N" range and turn ignition OFF.
Remove the electronic shift actuator.
(Refer to Automatic Transaxle Control System - "ELECTRONIC SHIFT ACTUATOR ")

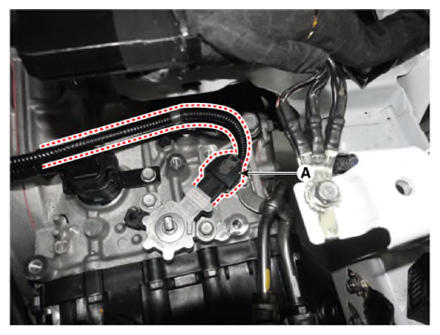

Disconnect the position sensor connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

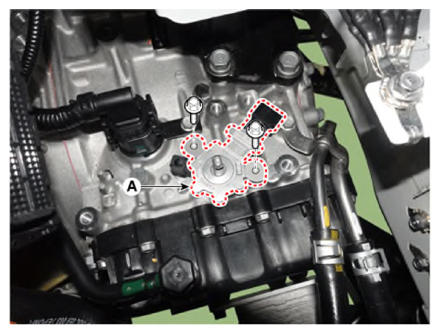

After disconnecting the connector, remove the position sensor (A) by removing the bolts.

Courtesy of KIA MOTORS AMERICA, INC.
