Description & Operation: Description

Controls the electric shift actuator by receiving a dial operated signal.

Transmits the signal received from the position sensor (P/R/N/D position) to the TCM.

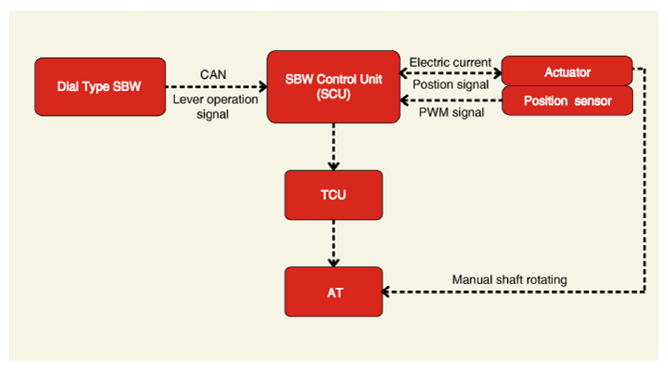

G14957279Courtesy of KIA MOTORS AMERICA, INC.
