Repair Procedures: Removal

Remove the air cleaner assembly.
(Refer to Engine Mechanical System - "AIR CLEANER ")

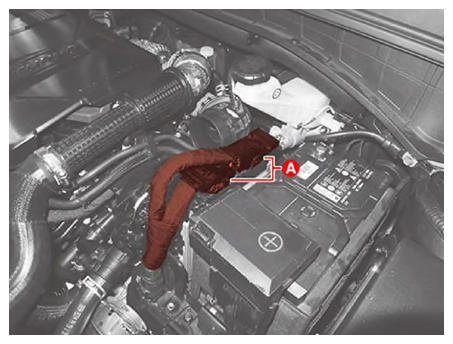

Disconnect the Engine Control Module (ECM) connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

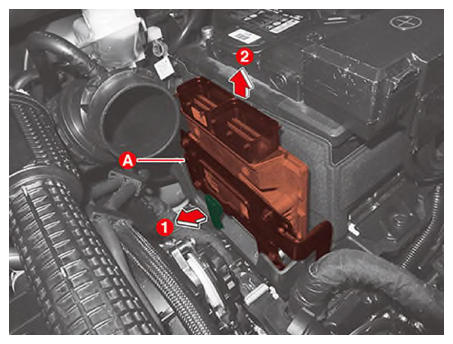

Remove the ECM (A) by pulling it in the arrow direction after releasing the hooks.

Courtesy of KIA MOTORS AMERICA, INC.

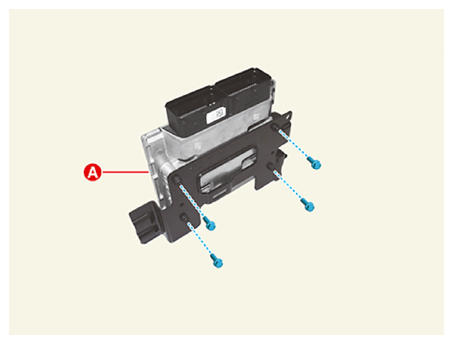

Remove the bracket from the ECM (A) after removing the mounting bolts.
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
