Tailgate Outside Handle Switch

WARNING: This page is about a different variant/trim than selected.
  1. Remove the tailgate lower trim.

    (Refer to Body - "TAILGATE TRIM ")

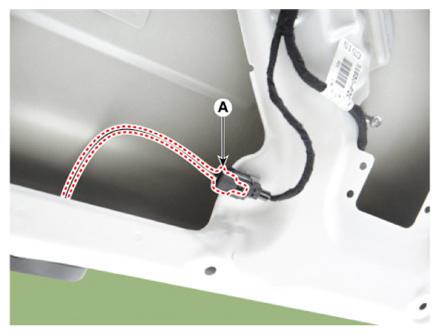

  2. Disconnect the tailgate outside handle switch connector (A).
    G14958725Courtesy of KIA MOTORS AMERICA, INC.

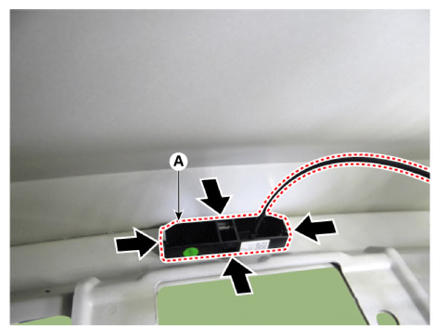

  3. Remove the tailgate outside handle switch (A) by pushing the hooks.
    G14958726Courtesy of KIA MOTORS AMERICA, INC.
