Repair Procedures: Disassembly

  1. Loosen the screw and then remove the upper cover.

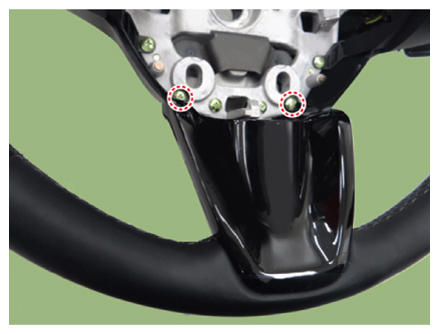

    G14996845Courtesy of KIA MOTORS AMERICA, INC.

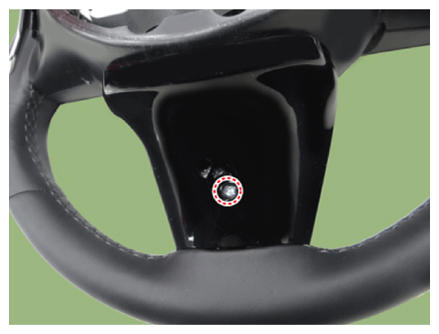

    G14996846Courtesy of KIA MOTORS AMERICA, INC.

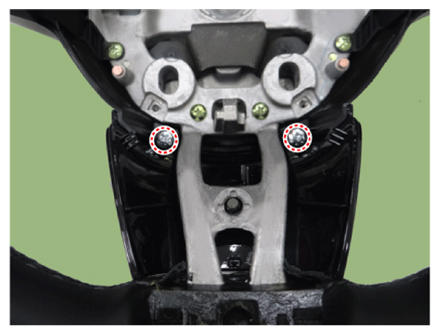

    G14996847Courtesy of KIA MOTORS AMERICA, INC.
  2. Loosen the damper screw and then remove the damper.

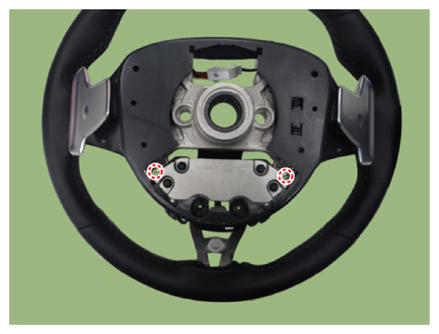

    G14996848Courtesy of KIA MOTORS AMERICA, INC.
  3. Loosen the paddle shift screw.

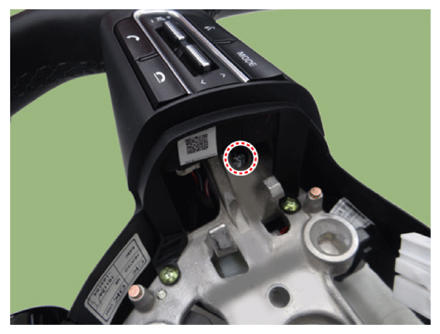

    G14996849Courtesy of KIA MOTORS AMERICA, INC.

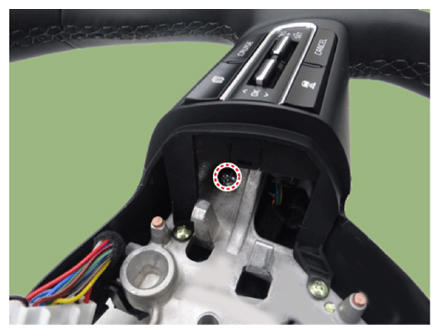

    G14996850Courtesy of KIA MOTORS AMERICA, INC.
  4. Using the driver, disconnect the paddle shift connector.

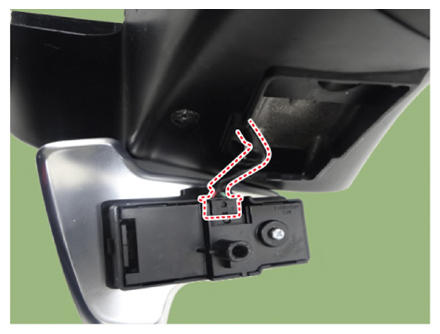

    G14996851Courtesy of KIA MOTORS AMERICA, INC.

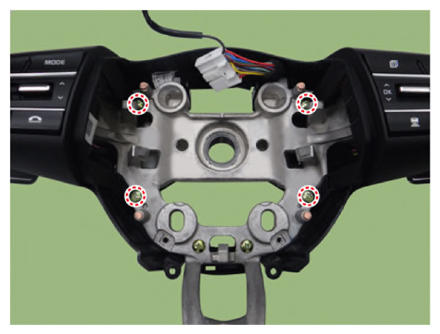

  5. Loosen the remote control switch screw and then separate the remote control switch.
    G14996852Courtesy of KIA MOTORS AMERICA, INC.
  6. Disconnect the remote control switch connector and then remove the remote control switch & lower cover.

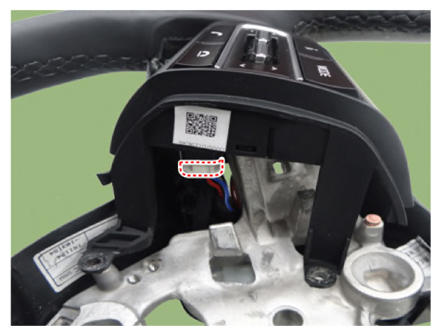

    G14996853Courtesy of KIA MOTORS AMERICA, INC.

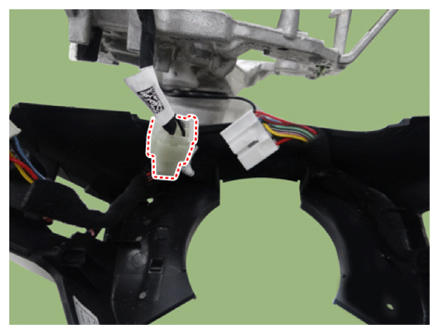

  7. Disconnect the connector and then remove the steering wheel body.
    G14996854Courtesy of KIA MOTORS AMERICA, INC.
  8. Install in the reverse order of removal.
