Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "VEHICLE S/W MANAGEMENT" of concerned component with KDS.
 Fig. 1 to 5

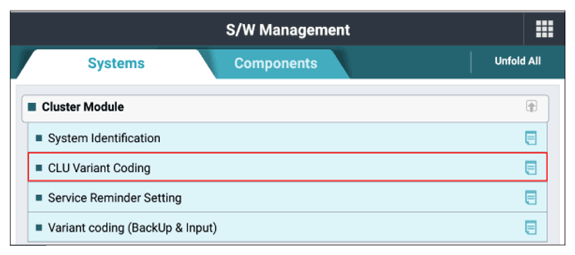

G14780971Courtesy of KIA MOTORS AMERICA, INC.

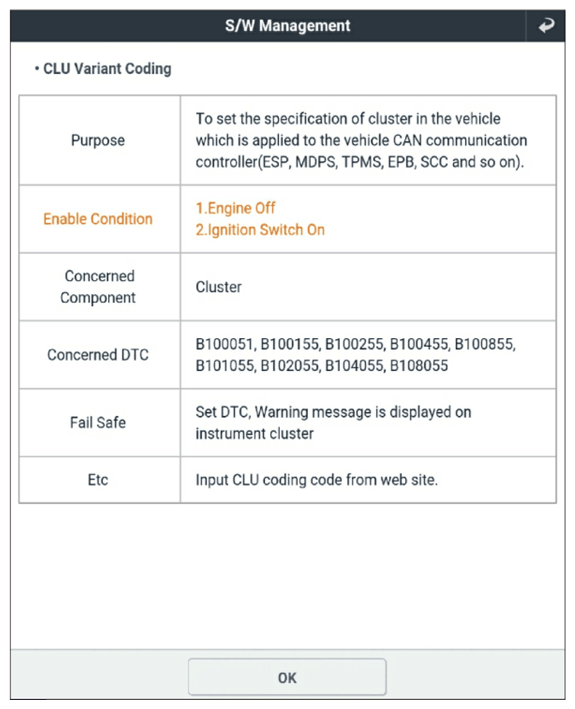

G14780972Courtesy of KIA MOTORS AMERICA, INC.

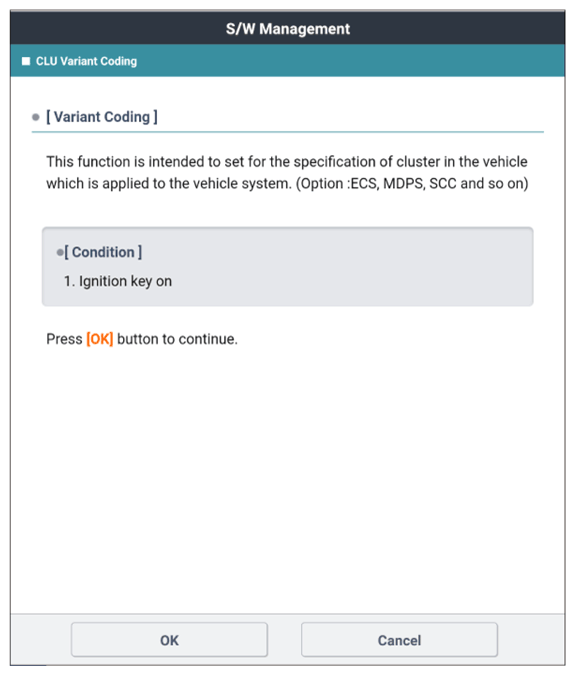

G14780973Courtesy of KIA MOTORS AMERICA, INC.

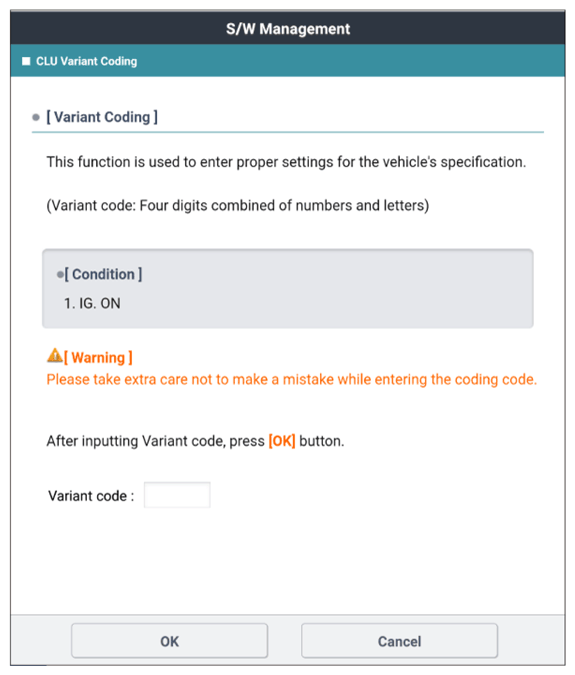

G14780974Courtesy of KIA MOTORS AMERICA, INC.

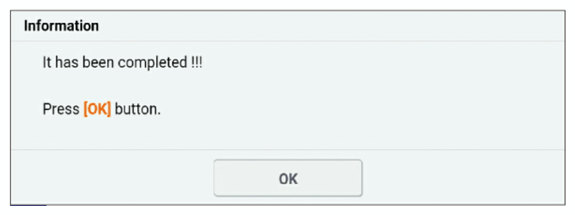

G14780975Courtesy of KIA MOTORS AMERICA, INC.
