Terminal Function

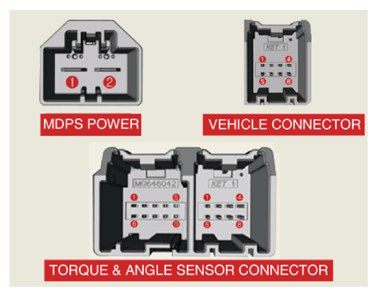

G14798163Courtesy of KIA MOTORS AMERICA, INC.
Type Pin No. Description
Power Connector 1 Battery +
2 Battery -
Vehicle Connector 1 IGNITION
2 -
3 -
4 -
5 -
6 -
7 CAN_HIGH
8 CAN_LOW
Torque & Ansgle Sensor Connector 1 Torque1_Sub
2 PWM2
3 Torque2_Sub
4 Sensor Power2
5 Torque2_Main
6 Sensor Power1
7 GND1
8 Torque1_Main
9 GND2
10 PWM1
