Smart Key Unit: Inspection: Buzzer

  1. Remove the front bumper assembly.

    (Refer to Body - "FRONT BUMPER ASSEMBLY ")

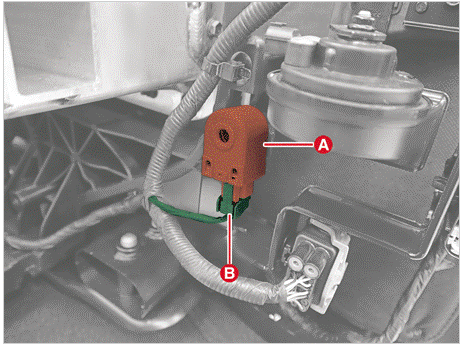

  2. Disconnect the connector (B) from buzzer (A).
    G15812777Courtesy of KIA MOTORS AMERICA, INC.

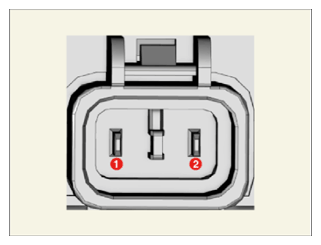

  3. Check for continuity between the terminals.
G15812778Courtesy of KIA MOTORS AMERICA, INC.
