Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front bumper assembly.

    (Refer to Body - "FRONT BUMPER ASSEMBLY ")

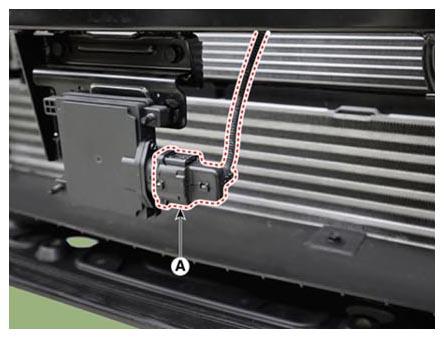

  3. Disconnect the front radar unit connector (A).
    G14557752Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the front radar unit (B) after removing the mounting bolts.
G14557753Courtesy of KIA MOTORS AMERICA, INC.
