Tailgate Open Switch

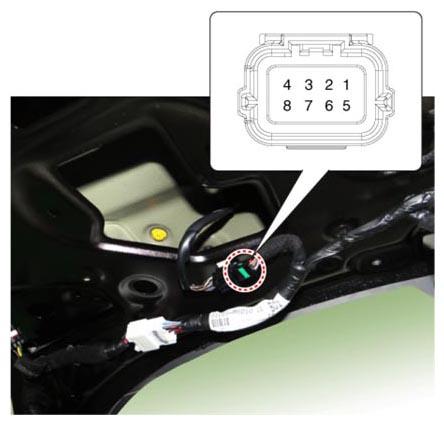

  1. Check for continuity between the tailgate open switch terminals.
    G14557037Courtesy of KIA MOTORS AMERICA, INC.

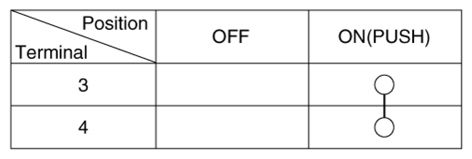

  2. If continuity is not specified, inspect the switch.
    G14557038Courtesy of KIA MOTORS AMERICA, INC.
