Smart Key Code Saving

  1. Connect the VCI II of KDS to the data link connector (16 pins) in driver side crash pad lower panel, turn the power on KDS.
  2. Select the vehicle model and then do "Smart key code saving".

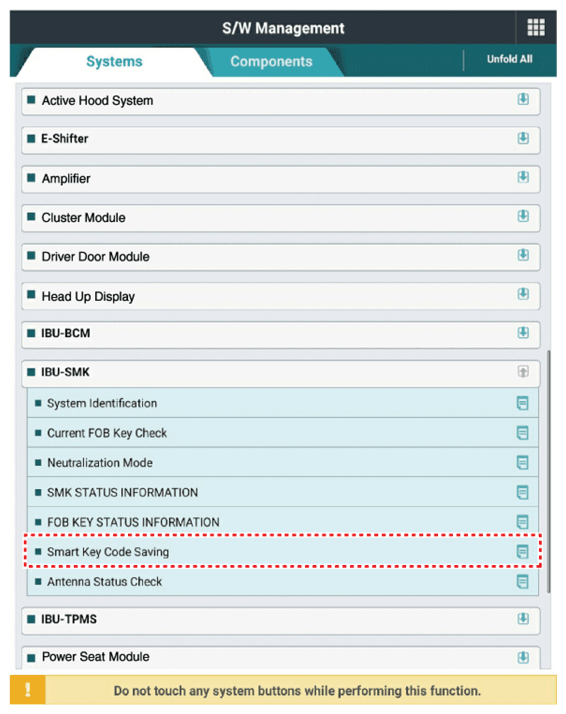

    G14557005Courtesy of KIA MOTORS AMERICA, INC.

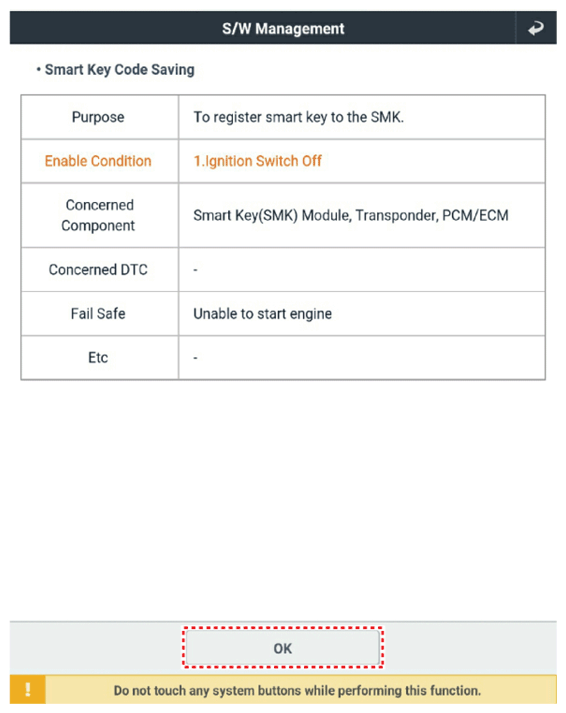

    G14557006Courtesy of KIA MOTORS AMERICA, INC.
  3. After selecting "Smart key teaching" menu, push "Enter" key, then the screen will be shown as below.

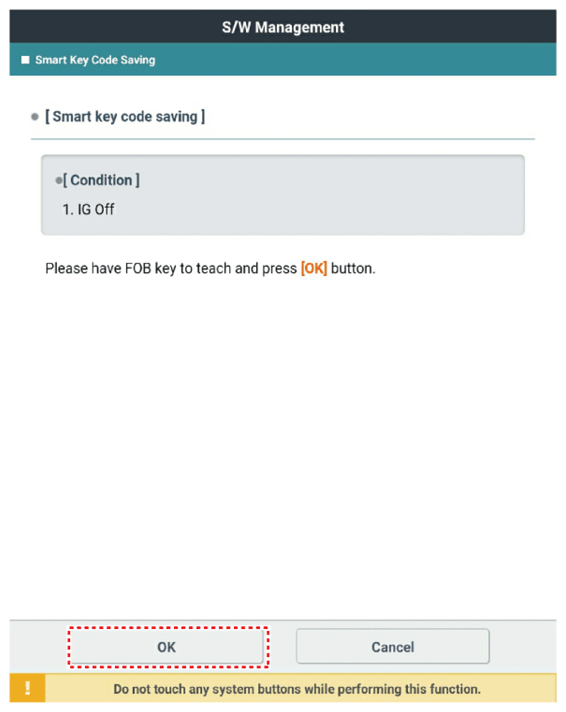

    G14557007Courtesy of KIA MOTORS AMERICA, INC.
  4. After having the teaching smart key, push "ENTER" key.
  5. Input the "Pin code" for first key teaching.

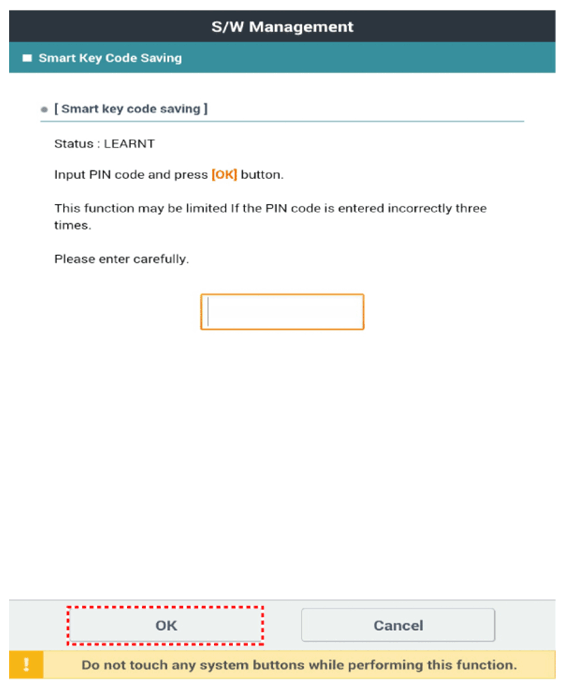

    G14557008Courtesy of KIA MOTORS AMERICA, INC.

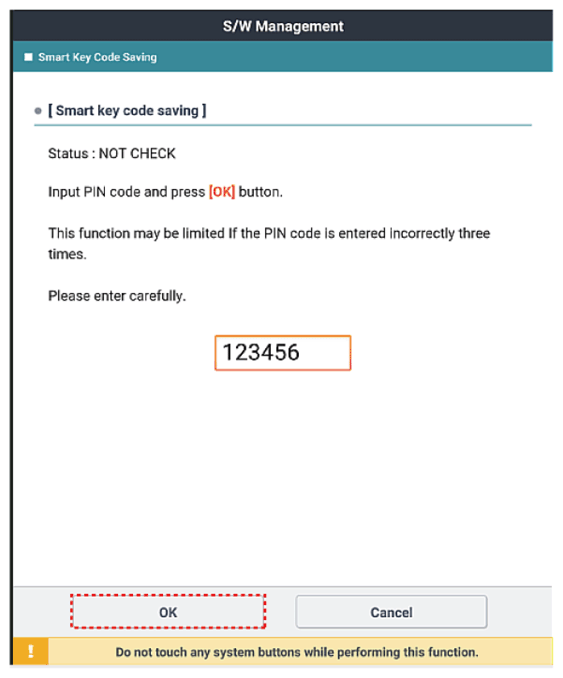

    G14557009Courtesy of KIA MOTORS AMERICA, INC.
    G14557010Courtesy of KIA MOTORS AMERICA, INC.
  6. Confirm the message "First key teaching completed".

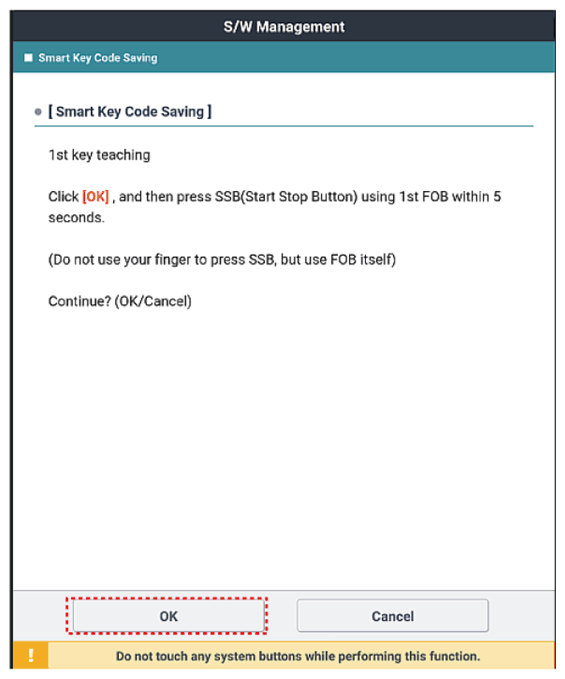

    G14557011Courtesy of KIA MOTORS AMERICA, INC.
  7. Press the SSB with smart key within 5 sec after pressing "OK".

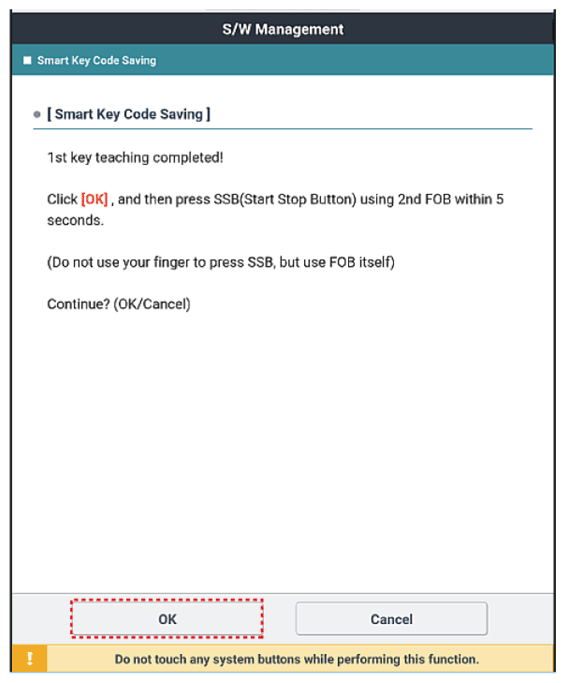

    G14557012Courtesy of KIA MOTORS AMERICA, INC.
  8. Confirm the message "Second key teaching completed".
    G14557013Courtesy of KIA MOTORS AMERICA, INC.

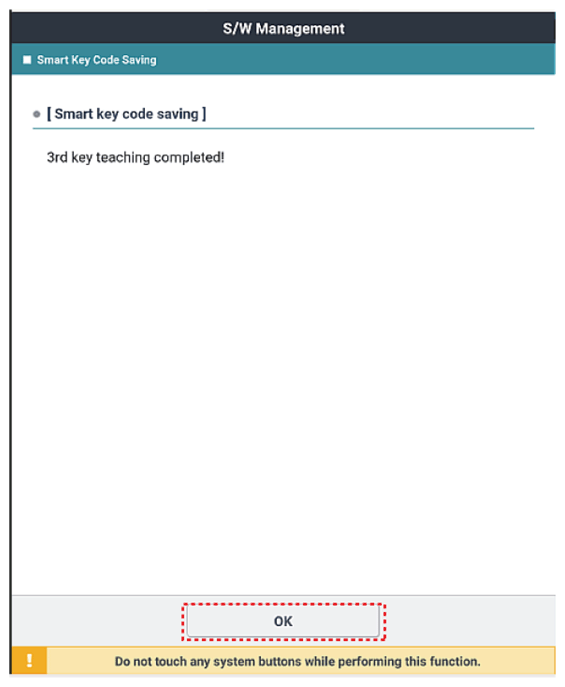

    G14557014Courtesy of KIA MOTORS AMERICA, INC.
  9. Then the screen will be shown as below when key teaching process is completed.
    G14557015Courtesy of KIA MOTORS AMERICA, INC.
