Repair Procedures: Removal

Remove the ignition coil.
G 1.6 T-GDI GAMMA (Refer to Ignition System - "IGNITION COIL ")

G 2.0 MPI NU (ATKINSON) (Refer to Ignition System - "IGNITION COIL ")
Using a spark plug wrench, remove the spark plug (A).

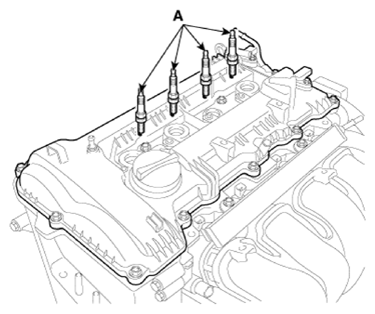

[G 1.6 T-GDI GAMMA]

Courtesy of KIA MOTORS AMERICA, INC.

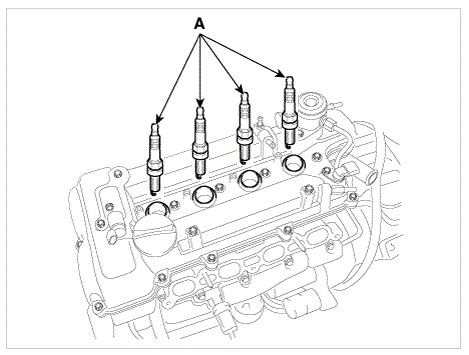

[G 2.0 MPI NU (ATKINSON)]

Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
- Be careful that no contaminates enter into spark plug holes.
