Components And Components Location: Components: [AWD]

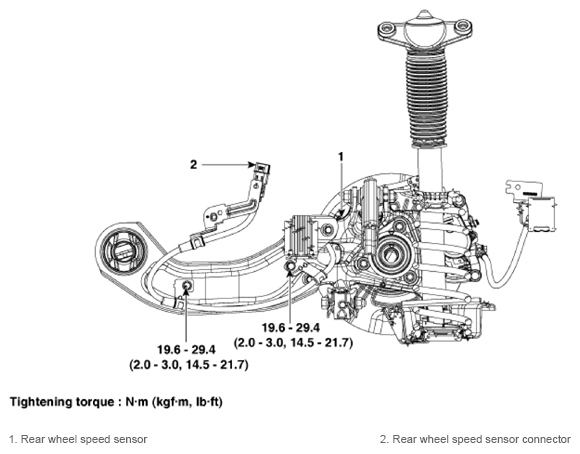

Fig 1: Rear Wheel Speed Sensor Components Location With Torque Specification (AWD)
G13835300Courtesy of KIA MOTORS AMERICA, INC.
