Smart Key Unit: Inspection: Buzzer

  1. Remove the front bumper assembly.

    (Refer to Body -  "FRONT BUMPER ASSEMBLY ")

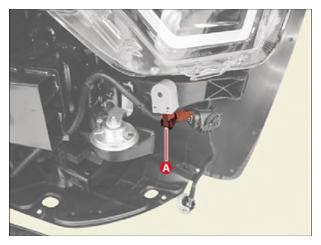

  2. Disconnect the buzzer connector (A).
    G15790652Courtesy of KIA MOTORS AMERICA, INC.

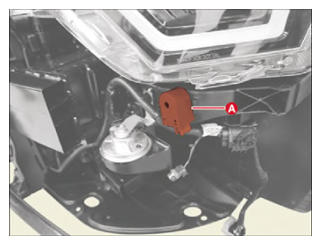

  3. Remove the buzzer (A).
    G15790653Courtesy of KIA MOTORS AMERICA, INC.

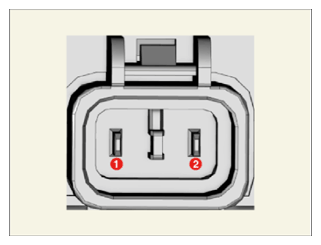

  4. Check for continuity between the terminals.
    G15790654Courtesy of KIA MOTORS AMERICA, INC.
