Tailgate Outside Handle Switch

  1. Remove the tailgate lid lower trim.

    (Refer to Body -  "TAILGATE LID TRIM ")

  2. Check for continuity between the terminals.

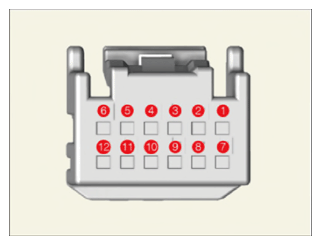

    [Standard Type]

    G15790650Courtesy of KIA MOTORS AMERICA, INC.
    Terminal Function
    Switch OFF Switch ON
    10 - 11 Discontinuity Continuity

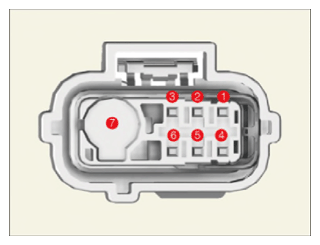

    [Option Type]

    G15790651Courtesy of KIA MOTORS AMERICA, INC.
    Terminal Function
    Switch OFF Switch ON
    5 - 4 Discontinuity Continuity
