Components And Components Location: Components

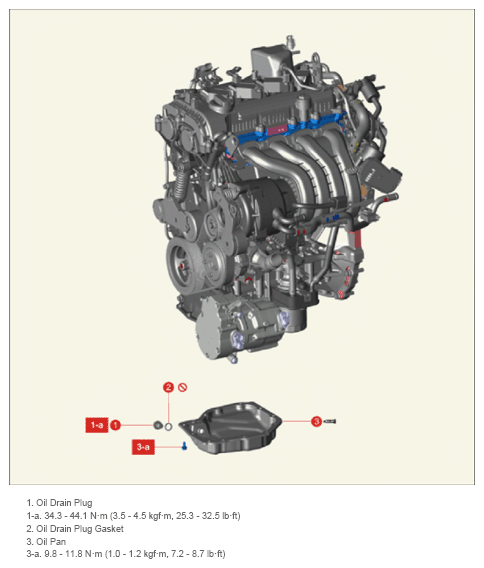

Fig 1: Oil Pan Components Location With Torque Specifications
G15787280Courtesy of KIA MOTORS AMERICA, INC.
