Inspection Procedure

Check related fuse(s) or relay(s).
Check 12V battery terminals and charge status.

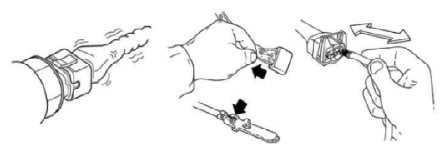

Check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.

Courtesy of KIA MOTORS AMERICA, INC.

Good
- Go to "COMPONENT INSPECTION " procedure.
No Good
- Repair as necessary and Go to "VERIFICATION OF REPAIR " procedure.
