Inspection Procedure

  1. Check related fuse(s) or relay(s).
  2. Check 12V battery terminals and charge status.

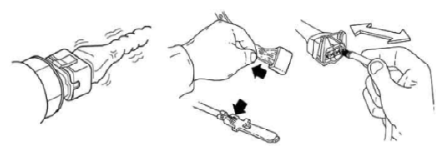

  3. Check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
    G15807533Courtesy of KIA MOTORS AMERICA, INC.

    Good

    No Good
