Terminal Function

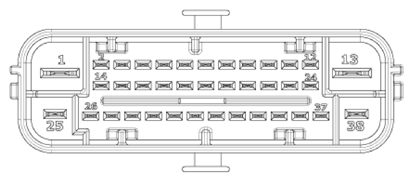

G13705519Courtesy of KIA MOTORS AMERICA, INC.
Pin No Description Current (AMPS) Resistance (mΩ) Remark
1 B+ PUMP MOTOR POWER 137(RUSH) 10
2 C-CAN Low 30 mA 250
5 ITPMS Reset Switch Inout 10mA 250
11 PARKING BRAKE SWITCH SIGNAL 10mA 250
13 GND_PUMP MOTOR GROUND 137(RUSH) 10
14 C-CAN High 30 mA 250
16 BRAKE LIGHT SWITCH SIGNAL 10 mA 250
17 WHEEL SPEED OUTPUT (FR) 16mA 250
18 WHEEL SPEED SENSOR POWER (FR) 30 mA 250
19 WHEEL SPEED SENSOR POWER (RR) 30 mA 250
20 WHEEL SPEED SENSOR SIGNAL GROUND (RL) 16.8 mA 250
21 WHEEL SPEED SENSOR SIGNAL GROUND (FL) 16.8 mA 250
22 L-CAN HIGH 30 mA 250
23 ESC ON/OFF SWITCH SIGNAL 10 mA 250
24 HAC DRIVE SIGNAL 200 mA 250
25 BATTERY(+) SOLENOID 40 10
27 ESS DRIVE SIGNAL 200mA 250
29 IGNITION1 50mA 60
31 WHEEL SPEED SENSOR SIGNAL GROUND (FR) 16.8mA 250
32 WHEEL SPEED SENSOR SIGNAL GROUND (RR) 16.8mA 250
33 WHEEL SPEED SENSOR POWER (RL) 30mA 250
34 WHEEL SPEED SENSOR POWER (FL) 30 mA 250
35 L-CAN LOW 30 mA 250
36 REVERSE GEAR SWITCH SIGNAL 10mA 250
37 CLUTCH SWITCH SIGNAL 10 mA 250
38 GROUND 40 10
