Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS/GDS to Data Link Connector (DLC).
  2. Perform "VEHICLE S/W MANAGEMENT" of concerned component with KDS/GDS.
 Fig.1 to 2
Fig.3 to 5

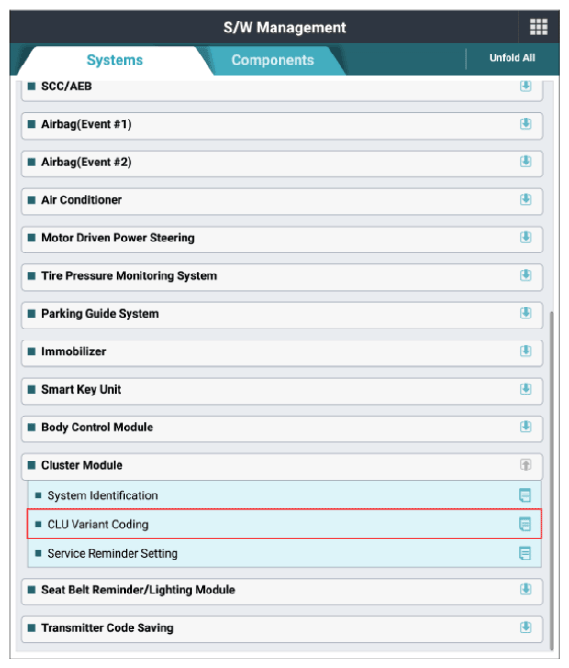

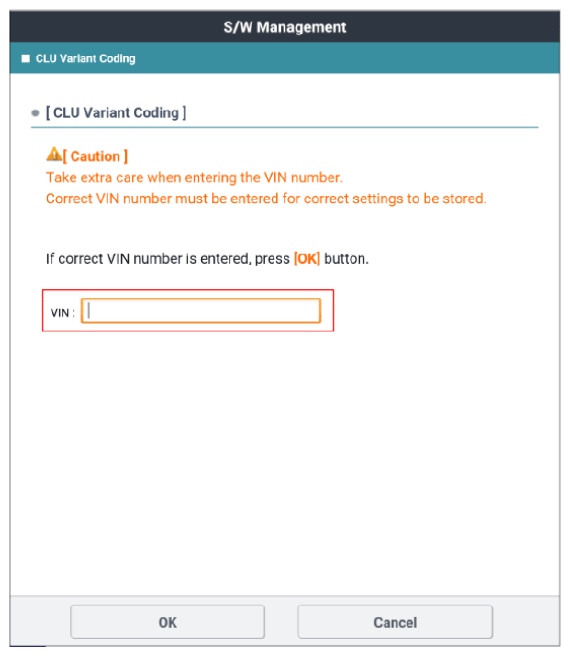

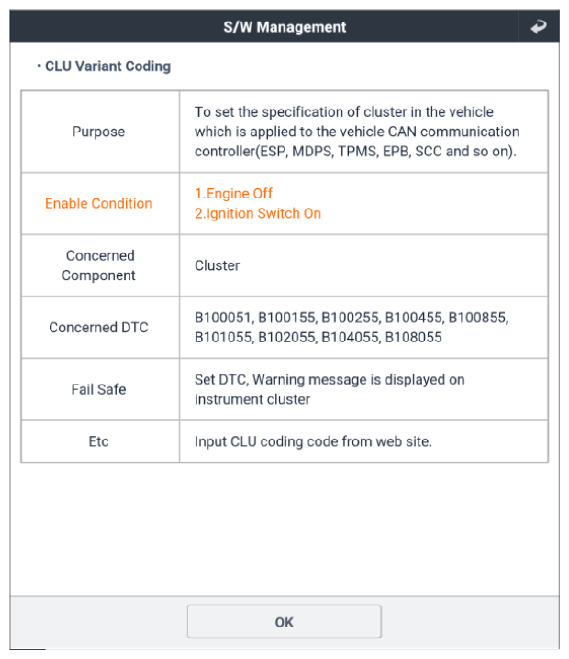

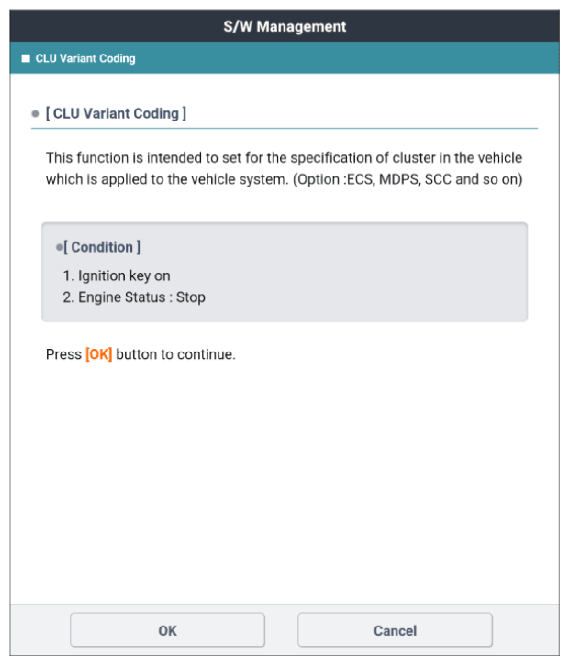

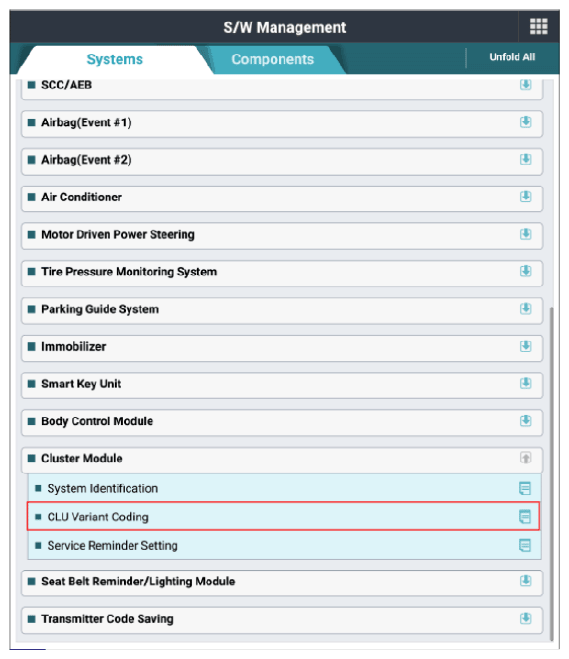

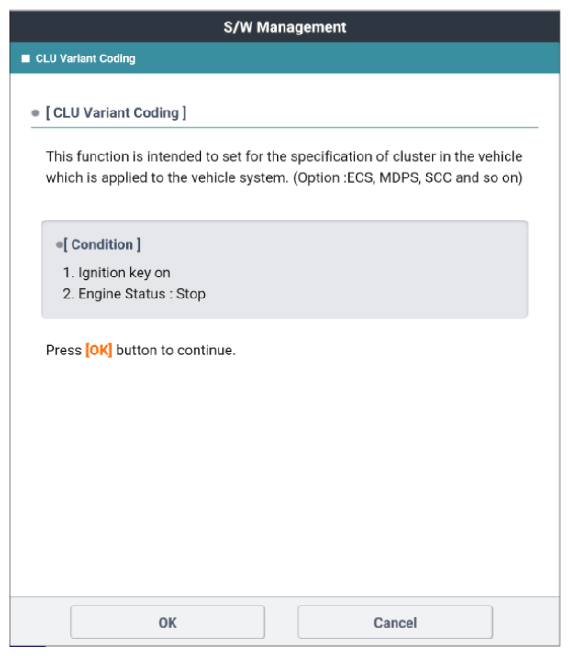

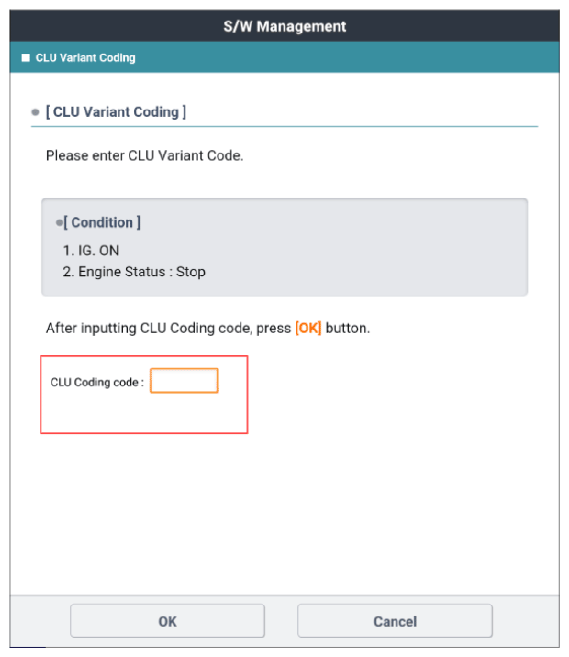

CAUTION: Using KDS/GDS performs the "Vehicle S/W Management" → "CLU Variant Coding" item.
The DTC is erased when programming is properly performed.
G13707904Courtesy of KIA MOTORS AMERICA, INC.
G13707905Courtesy of KIA MOTORS AMERICA, INC.
G13707906Courtesy of KIA MOTORS AMERICA, INC.
G13707907Courtesy of KIA MOTORS AMERICA, INC.
G13707908Courtesy of KIA MOTORS AMERICA, INC.
G13707909Courtesy of KIA MOTORS AMERICA, INC.
G13707910Courtesy of KIA MOTORS AMERICA, INC.
G13707911Courtesy of KIA MOTORS AMERICA, INC.
G13707912Courtesy of KIA MOTORS AMERICA, INC.
G13707913Courtesy of KIA MOTORS AMERICA, INC.
