Repair Procedures: Removal

Perform the oil pressure characteristics backup procedure using the KDS when replacing with a new TCM.

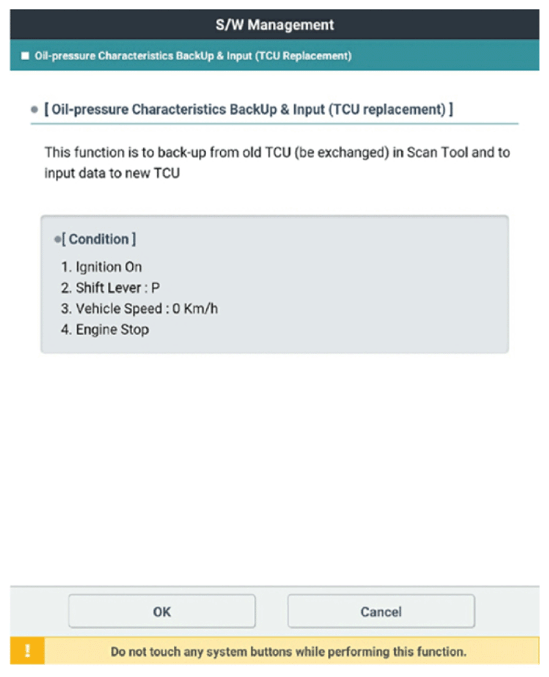

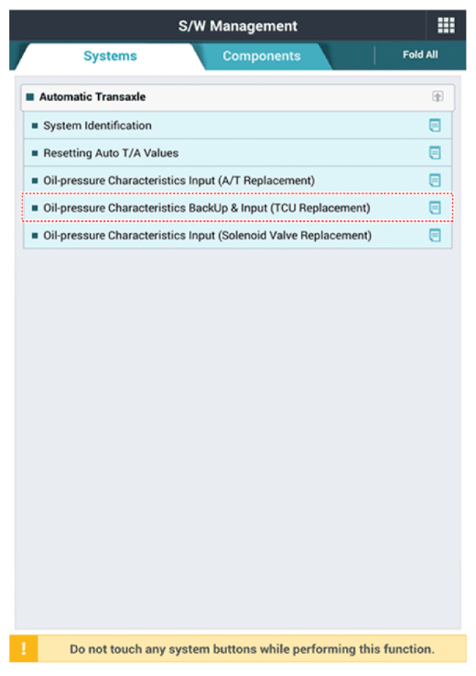

Click the "Oil-pressure Characteristics BackUp & Input (TCU replacement)".

Courtesy of KIA MOTORS AMERICA, INC.

Check the condition and then click the "OK".

Courtesy of KIA MOTORS AMERICA, INC.

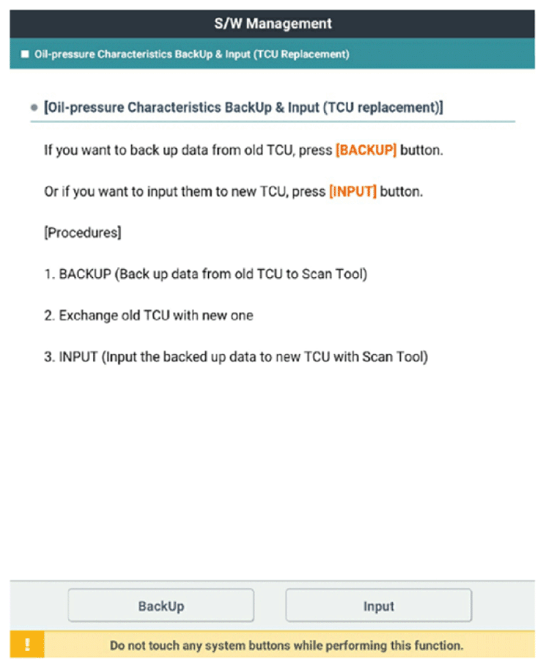

Click the "BackUp".

Courtesy of KIA MOTORS AMERICA, INC.

Remove the IBU unit.
(Refer to Body Electrical System - " INTEGRATED BODY CONTROL UNIT (IBU) (HEV) ")
Remove the SVM unit.
(Refer to Advanced Driver Assistance System (ADAS) - "SURROUND VIEW MONITOR (SVM) ")

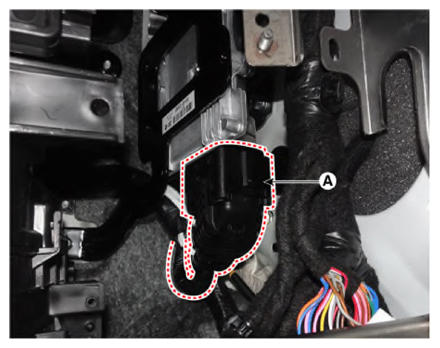

Disconnect the TCM connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

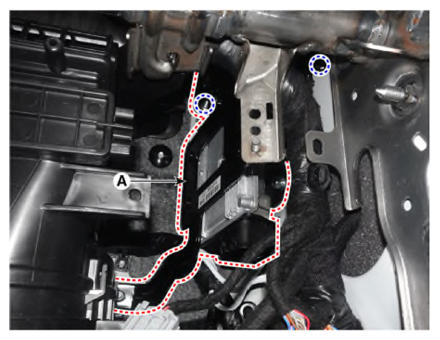

Remove the TCM (A) after removing the nuts.
Tightening torque :

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
