Service Point Target Auto Calibration (SPTAC) Procedure

  1. Install the SST (09964-C1200) on the roof center above the vehicle's front windshield.
    G15717394Courtesy of KIA MOTORS AMERICA, INC.
  2. Have the laser illuminate starting from the roof center and to passing through the emblem center.
    G15717395Courtesy of KIA MOTORS AMERICA, INC.

    Information

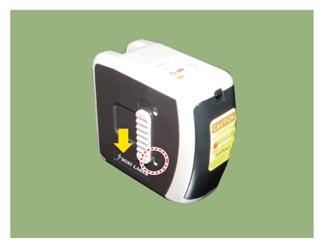

    The level laser must be set to 'ON' and the holding (locking) function is not used.

    G15717396Courtesy of KIA MOTORS AMERICA, INC.

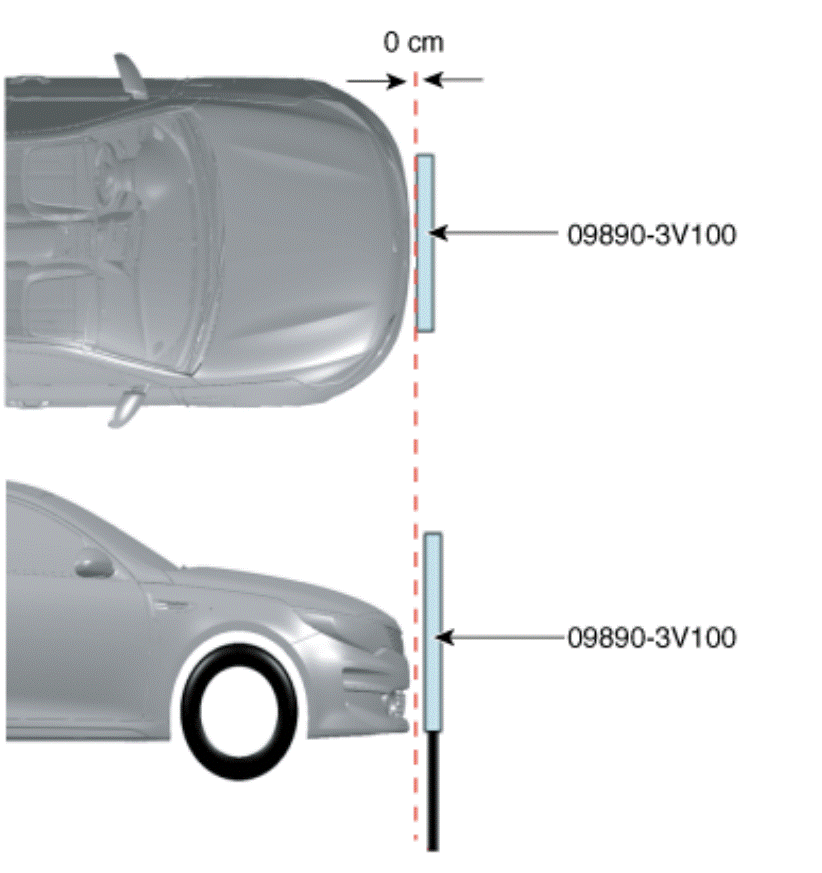

  3. Place the calibration target (09890-3V100) so that it adheres by 0 cm to the bumper front. [max. tolerance: 5 cm (1.97 in.)]
    G15717397Courtesy of KIA MOTORS AMERICA, INC.

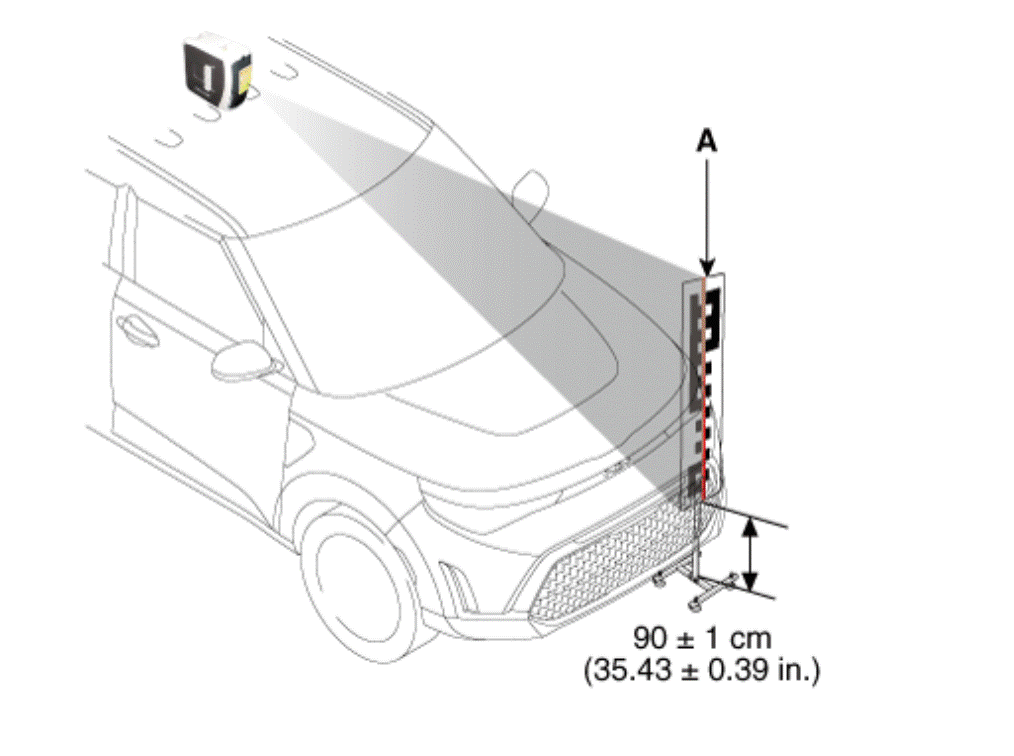

  4. Set the calibration target height to 90 ± 1 cm (35.43 ± 0.39 in.) from the ground and align the center of calibration target with center line (A) of laser beam.
    G15717398Courtesy of KIA MOTORS AMERICA, INC.
    NOTE:
    • The vehicle horizontal plane shall be completely parallel to the target horizontal plane (0 degree).
    • Align the calibration target (09890-3V100) referring to the below tolerance angle.

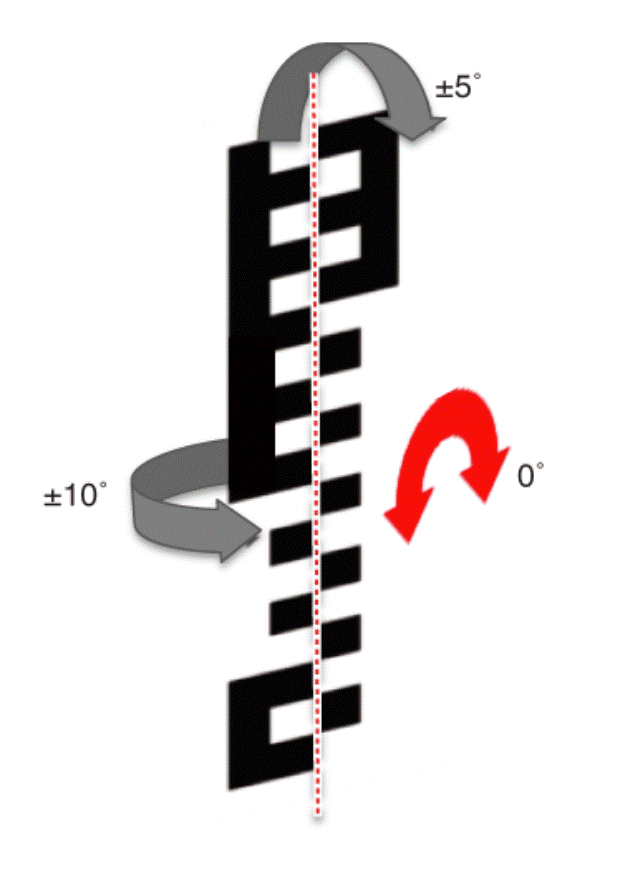

      G15717399Courtesy of KIA MOTORS AMERICA, INC.
        L/R torsion F/B gradient L/R gradient
      Tolerance angle ± 10° ±5° 0°
    • Mounting area must not have cross hatch patterns or textual markings near the target.
    • Target should be well lit for optimal performance using non-fluctuating illumination. There shall be no continuous shadows cast on the target.
    • The light should be directed toward the target front and the target front should be brighter than the target rear and target.

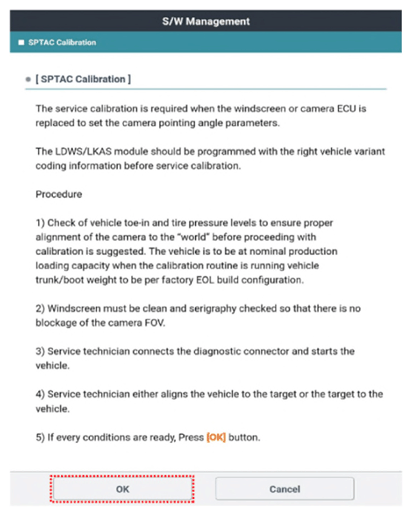

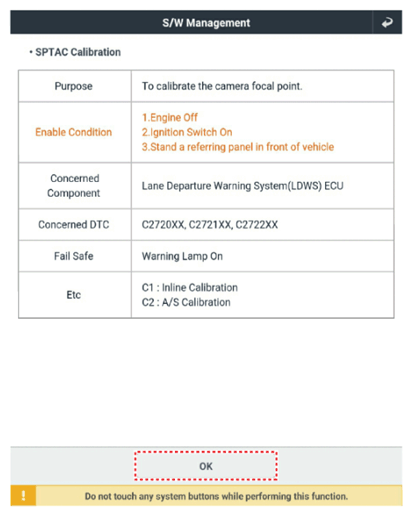

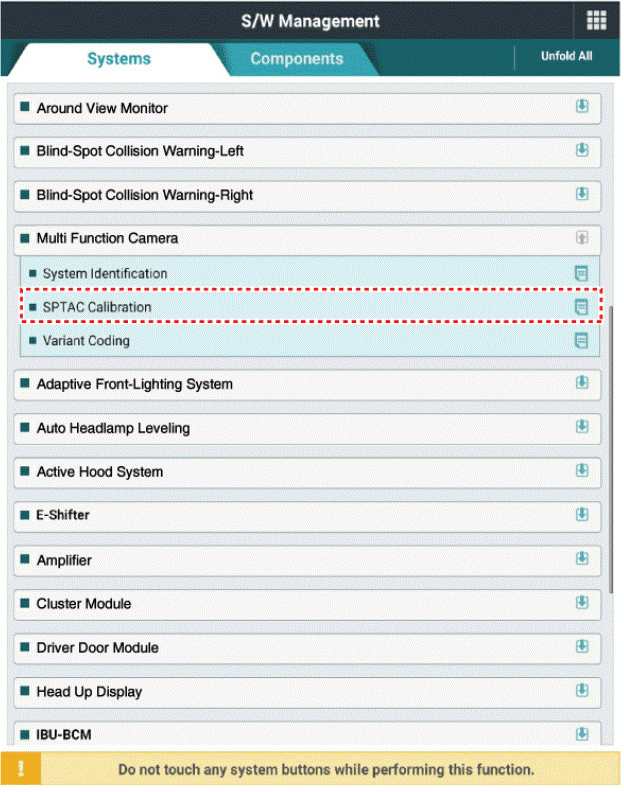

  5. Perform the "SPTAC Calibration" using the KDS.
    G15717401Courtesy of KIA MOTORS AMERICA, INC.
    G15717402Courtesy of KIA MOTORS AMERICA, INC.
    G15717403Courtesy of KIA MOTORS AMERICA, INC.

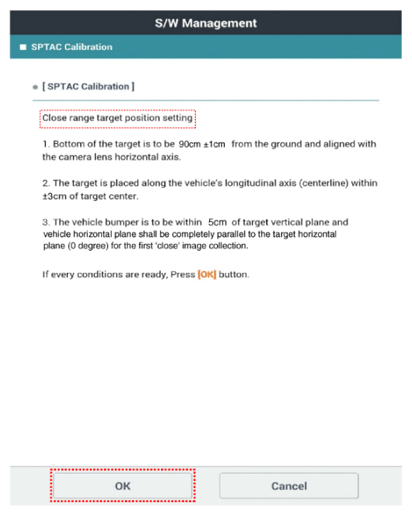

  6. Perform the short-distance calibration by selecting the "OK" message on the KDS after checking the calibration target location.
    G15717404Courtesy of KIA MOTORS AMERICA, INC.
    G15717405Courtesy of KIA MOTORS AMERICA, INC.

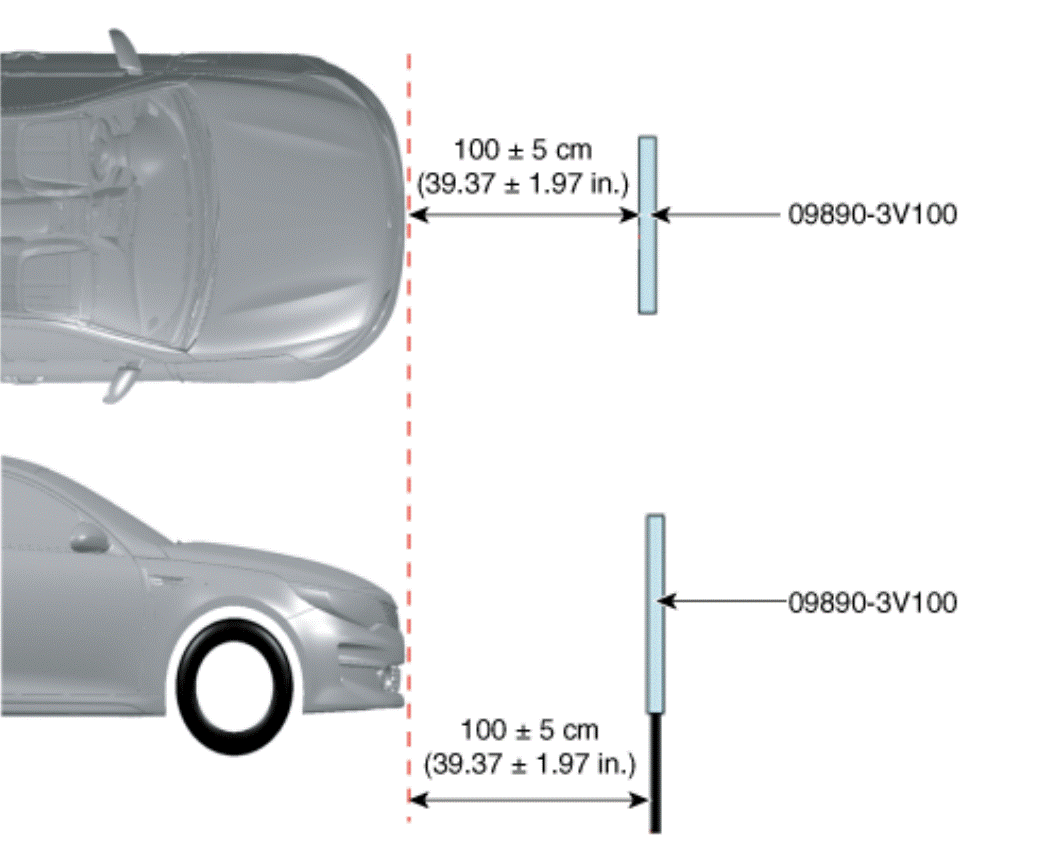

  7. Move the calibration target (09890-3V100) at 100 cm (39.37 in.) from the bumper. [max. tolerance: ± 5 cm (± 1.97 in.)]
    G15717406Courtesy of KIA MOTORS AMERICA, INC.
  8. Align the center of calibration target with center line (A) of laser beam.
    G15717407Courtesy of KIA MOTORS AMERICA, INC.
    NOTE:
    • The vehicle horizontal plane shall be completely parallel to the target horizontal plane (0 degree).
    • Align the calibration target (09890-3V100) referring to the below tolerance angle.

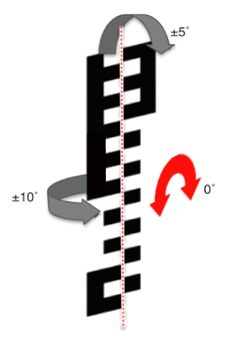

      G15717408Courtesy of KIA MOTORS AMERICA, INC.
        L/R torsion F/B gradient L/R gradient
      Tolerance angle ± 10° ±5° 0°
    • Mounting area must not have cross hatch patterns or textual markings near the target.
    • Target should be well lit for optimal performance using non-fluctuating illumination. There shall be no continuous shadows cast on the target.
    • The light should be directed toward the target front and the target front should be brighter than the target rear and target.

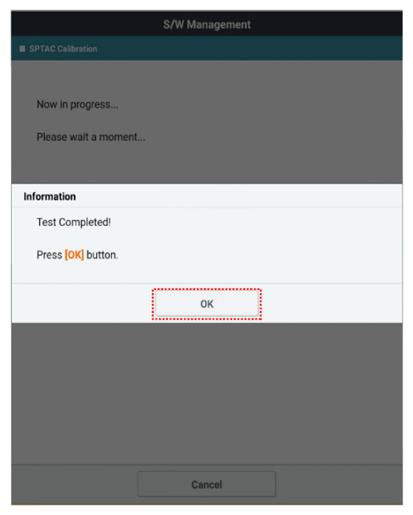

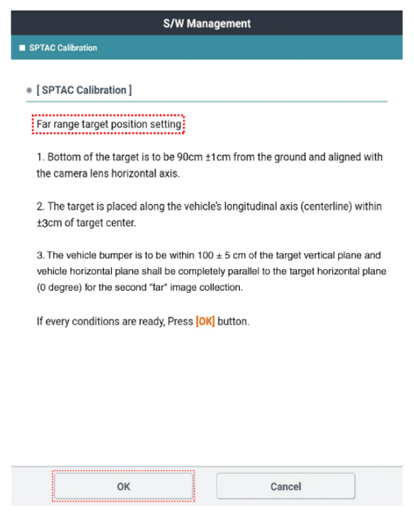

  9. Perform the long-distance calibration by selecting the "OK" message on the KDS after checking the calibration target location.
    G15717410Courtesy of KIA MOTORS AMERICA, INC.
    G15717411Courtesy of KIA MOTORS AMERICA, INC.
    G15717412Courtesy of KIA MOTORS AMERICA, INC.
  10. Clear the diagnostic trouble codes (DTC) using the KDS.
  11. Check the DTC and warning lamp.
