Components & Components Location: Components

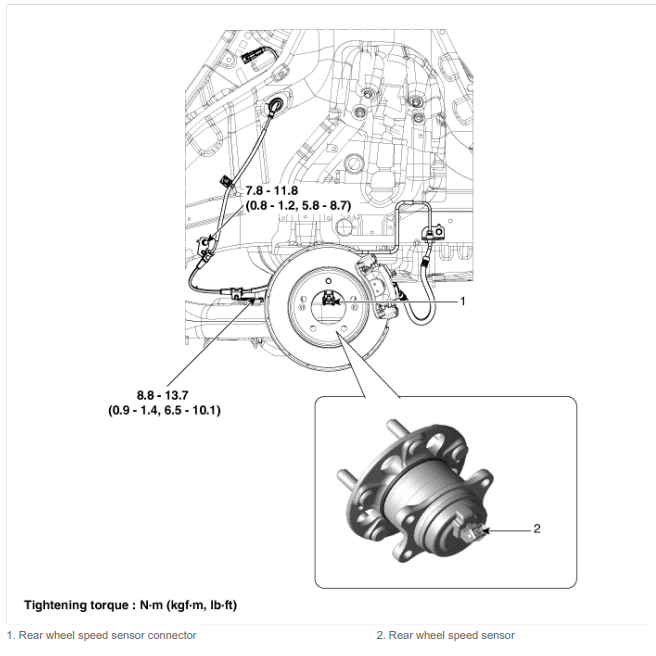

Fig 1: Rear Wheel Speed Sensor Components Location With Torque Specification
G15715290Courtesy of KIA MOTORS AMERICA, INC.
